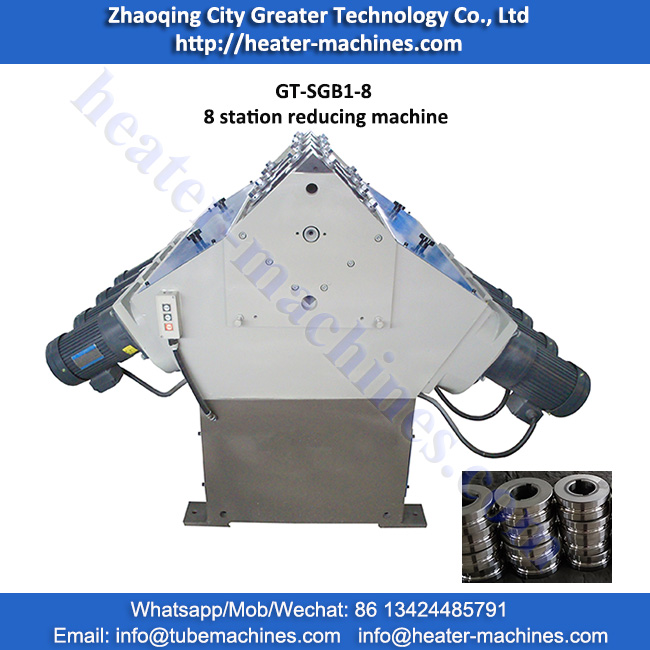

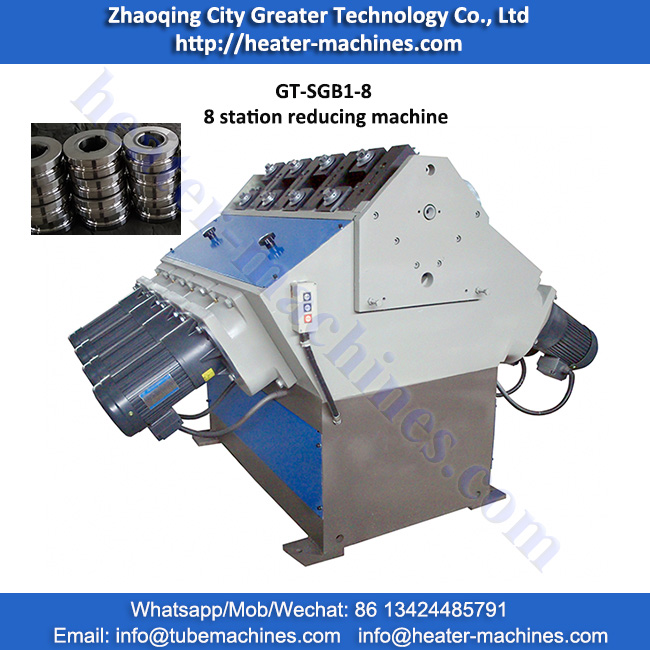

GT-SGB1-8 8 station Roll Reducing Machine

  • Item No.: GT-SGB1-8
  • Rotating speed of Roller: 60rpm
  • Roller dimension: outside diameter φ98.5 mm; inside diameter φ45 mm; thickness 38 mm
  • Motor power (single): 0.75KW
  • INQUIRY

GT-SGB1-8 reducing machine

Function
Reduce heater to increase density;

Features

  • Small power;
  • Few noise;
  • The best reference range to shrink (mm): Φ4-Φ10mm variety of specifications,length shorter than 1 meter(within the reference range, the life of the equipment will be longer)
  • Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;
  • Suitable tube's shape: round;
  • Shrinking speed: uniform speed,non-uniform speed (according to the demand of customer).
  • Change roller or roll assemble can reduce different diameter;
  • Can match with our feeding machine to increase of efficiency;
  • Can match with our marking mechanism for mark your brand heaters.
  • Application
    Round heater reduce, such as tubular heater.

    Information need for order SG8A roll reducing machine

    • Tube diameter before and after reduce, such as Φ8-6.6mm
    • Length before reduce
    • Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)


    B1 style reducing machine Main models and technical parameters

    models


    installation


    tube diameter to reduce


    Min length to reduce


    rotating speed of roller


    Power supply single / total power


    Productivity/8h


    size


    weight


    GT-SGB1 reducing machine


    vertical or horizontal two styles


    3.5-16mm round/ square/flat

    / elliptical  pipe


    150mm


    Between 20-70 rpm


    380V 50HZ /0.75KW / 9KW

    5000-70000m/8h

    1.6*1.3*1.1m

    about 2000KG

    8 station rolling mill machine
