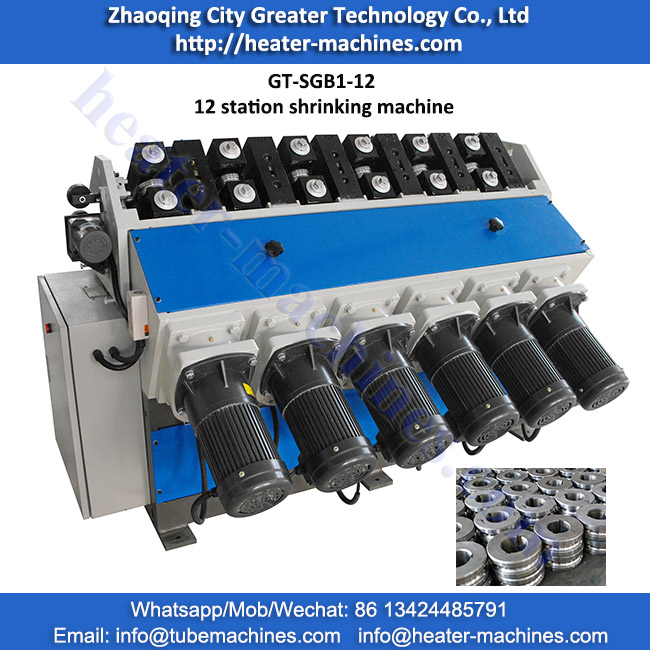

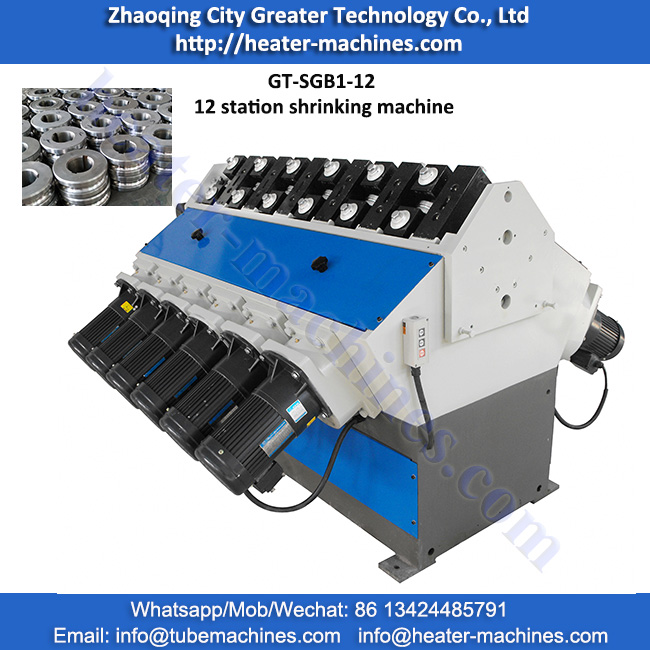

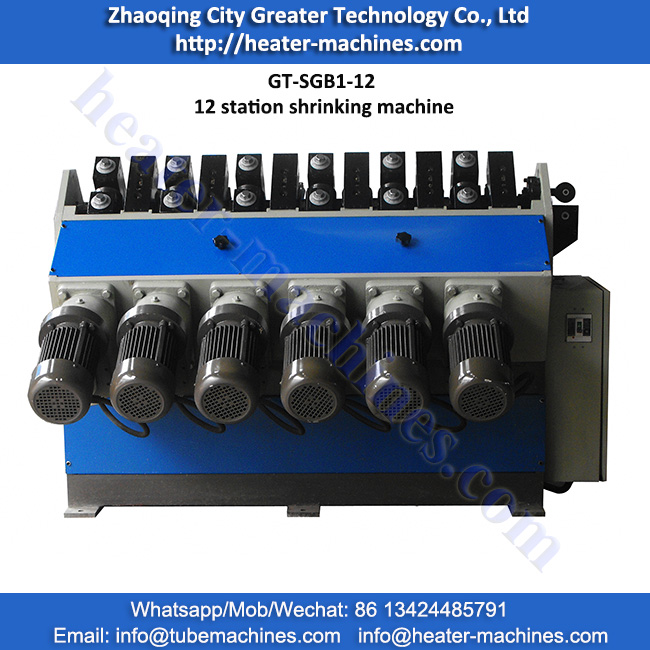

GT-SGB1-12 12station Roll Reducing Machine

  • Item No.: GT-SGB1-12
  • Rotating speed of Roller: 60rpm
  • Roller dimension: outside diameter φ98.5 mm; inside diameter φ45 mm; thickness 38 mm
  • Motor power (single): 0.75KW
  • INQUIRY

GT-SGB1-12 reducing machine

Function
Reduce heater to increase density;
Features

  • Small power;
  • Few noise;
  • The best reference range to shrink (mm): Φ4-Φ9.5mm variety of specifications,length shorter than 2 meter(within the reference range, the life of the equipment will be longer)
  • Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;
  • Suitable tube's shape: round;
  • Shrinking speed: uniform speed, non-uniform speed (according to the demand of customer).
  • Change roller or roll assemble can reduce different diameter;
  • Can match with our feeding machine to increase of efficiency;
  • Can match with our marking mechanism for mark your brand heaters.
Application
Round heater reduce, such as tubular heater.
Information need for order  GT-SGB1-12 roll reducing machine
  • Tube diameter before and after reduce, such as Φ8-6.6mm
  • Length before reduce
  • Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz


GT-SGB1-12 style reducing machine Main models and technical parameters

models


installation


tube diameter to reduce


Min length to reduce


rotating speed of roller


Power supply single / total power


Productivity/8h


size


weight


GT-SGB1-12 reducing machine


vertical or horizontal two styles


3.5-16mm round/ square/flat

/ elliptical  pipe


150mm


Between 20-70 rpm


380V 50HZ /0.75KW / 9KW

5000-70000m/8h

1.6*1.3*1.1m

about 2000KG

12 station shrinking machine tubular heaters
