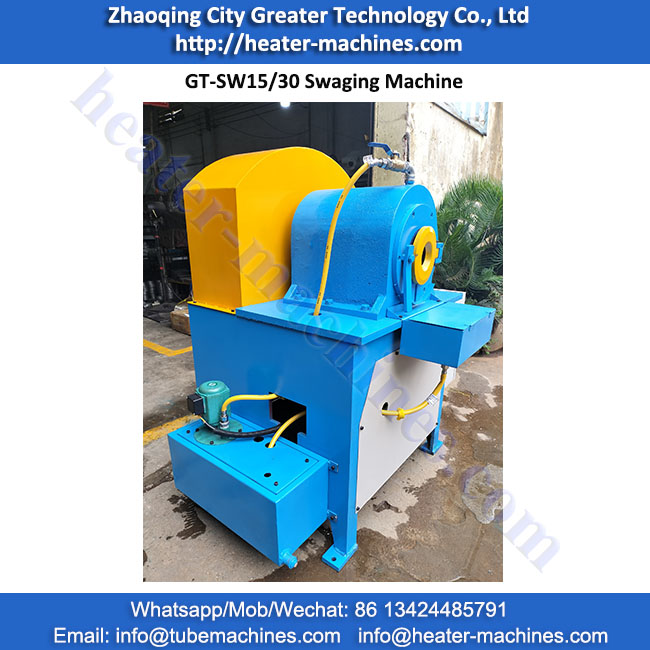

GT-SW15/30 Swaging Machine

  • Item: GT-SW-15/30
  • max diameter:Φ15/30mm
  • min length: 60mm
  • Power of motor: 380V 7.5KW 5.5KW
  • INQUIRY

Function
* Reduce heater to increase density (for round heater);
* Specially designed for industrial heater reducing;
* Easy operation and molds change easy, Suitable for small quantity and multi-diameters production;
* One mold in 4 pcs, with good smooth and round finish;
* Small size in nice design.

Application
Round heater reduce, such as cartridge heater reduce, hot runner heater reduce and some industrial heater reduce.

Information need for order GT-SW-15/30 swaging machine

  • tube diameter before and after reduce
  • Length before reduce
  • Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

Main Structure and Performances

GT-SW-15/30 round swaging machine is specially designed for industrial heating elements, which in small quantity, and many sizes. It can produce high density cartridge heaters, hot runner heaters and double end tubular heaters. It is easy and quick to change the molds.


Main models and technical parameters


Mode

Tube diameter

Minlength to reduce

power

size

weight

GT-SW-15/30


1.5-15mm round pipes

5-30mm round pipes

60mm

380V 50HZ 5.5KW\7.5KW

1200*1000*1200mm

600KG

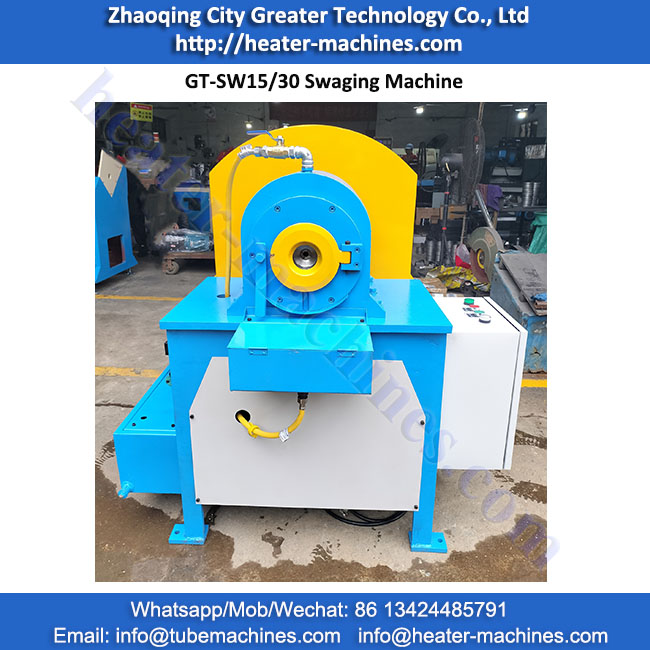

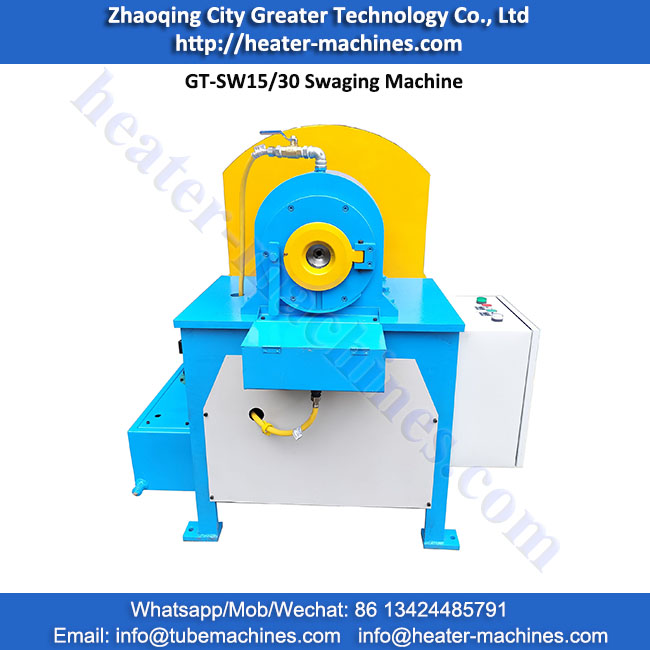

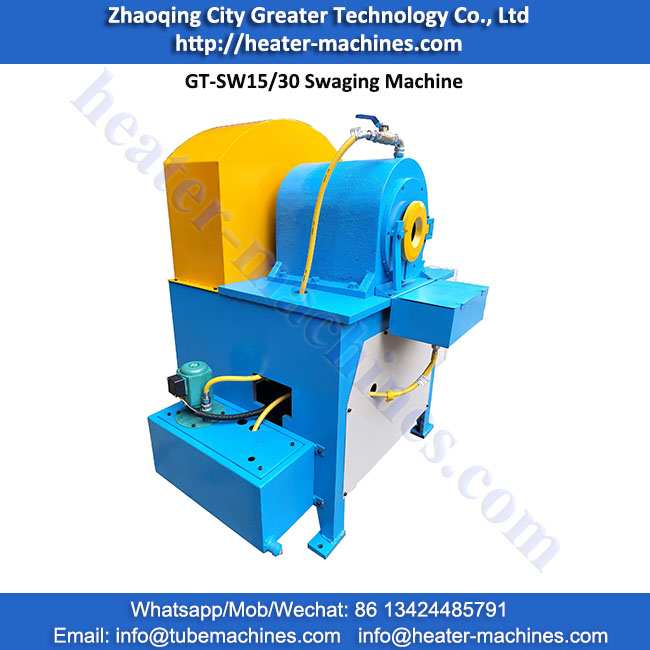

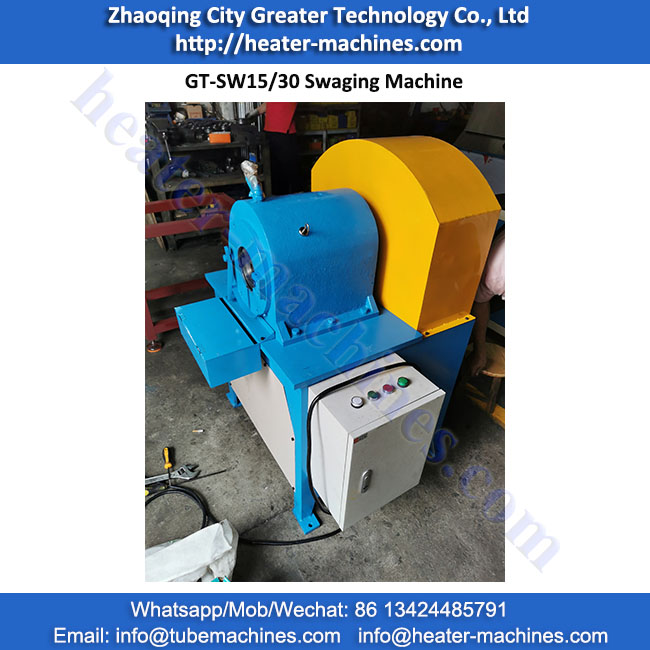

We improved the GT-SW15/30 swaging machine in new design as below. Which is easier for maintain in future.

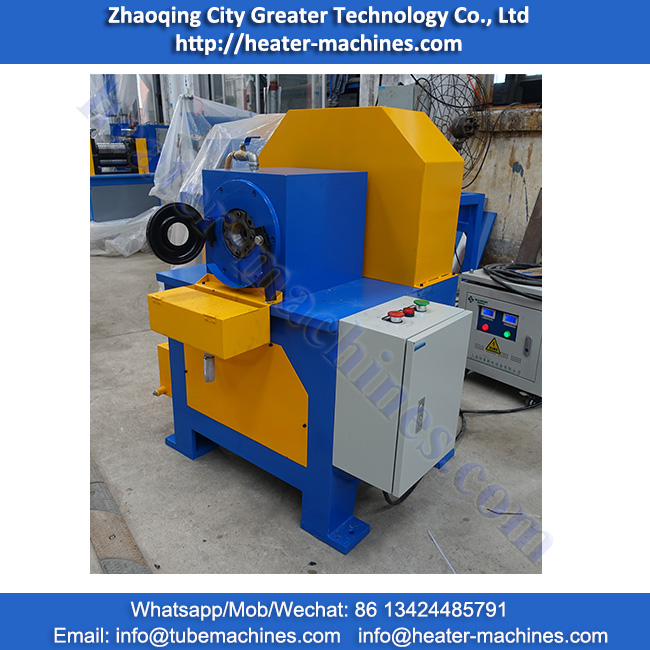

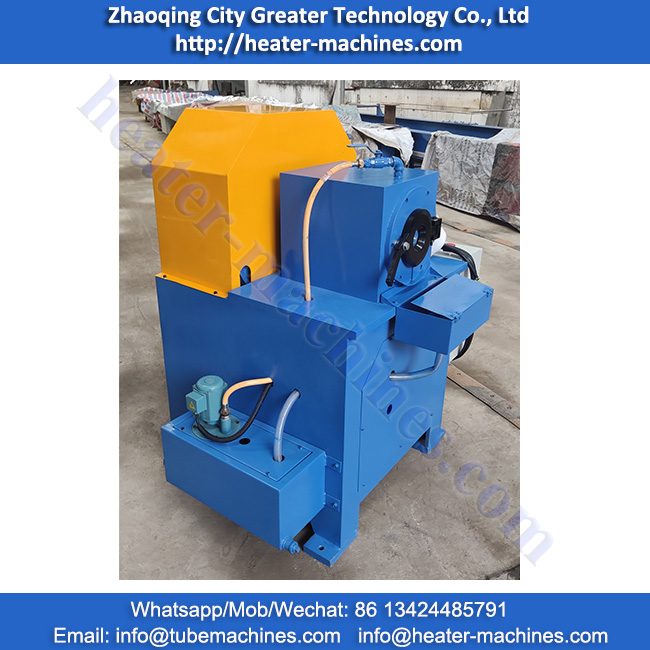

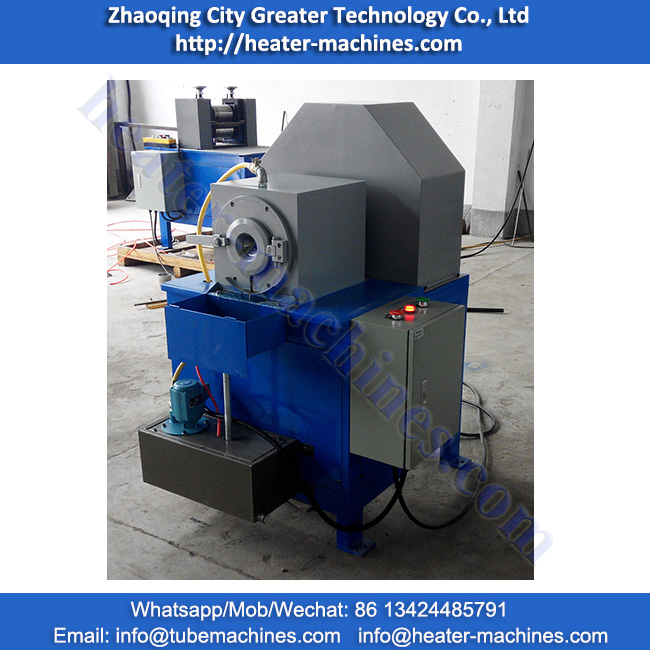

Below is old design supplied before
