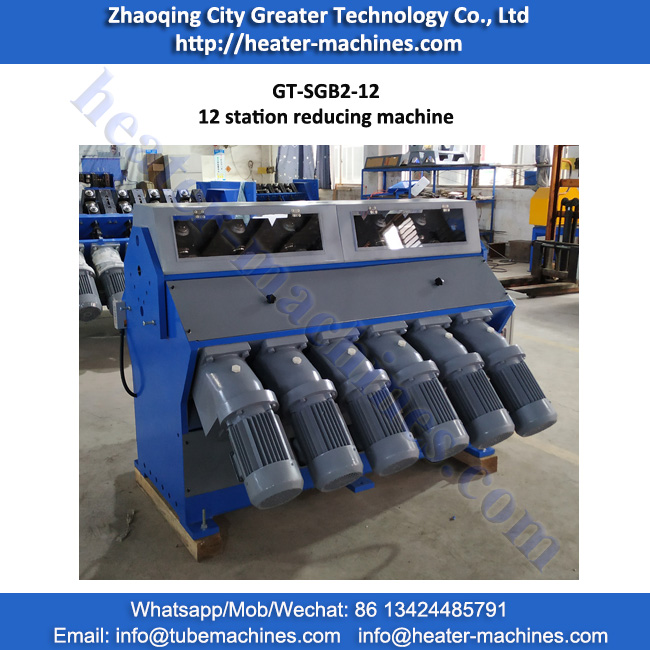

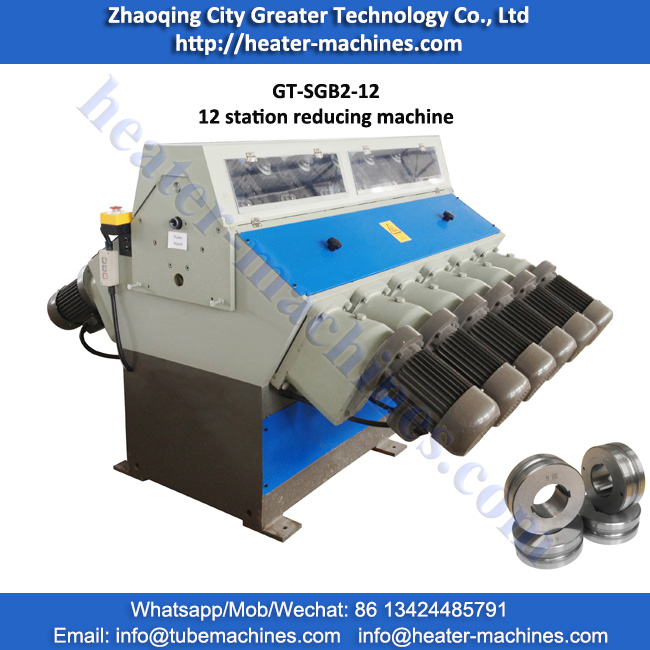

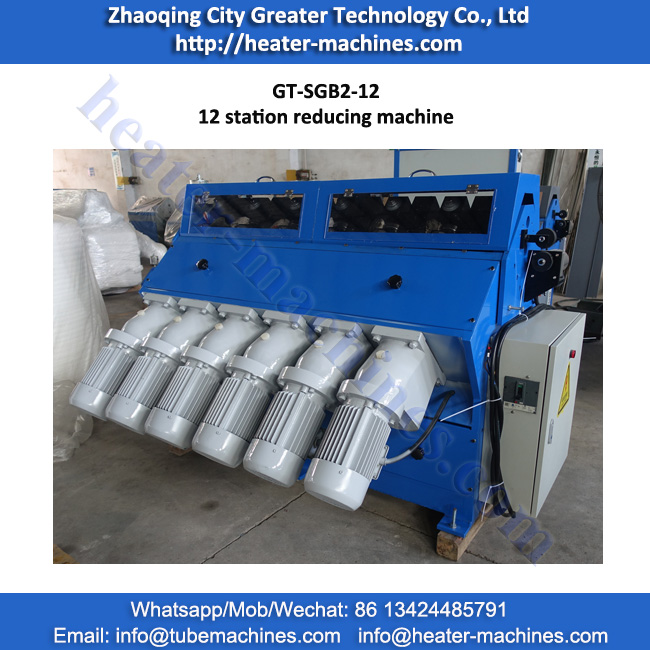

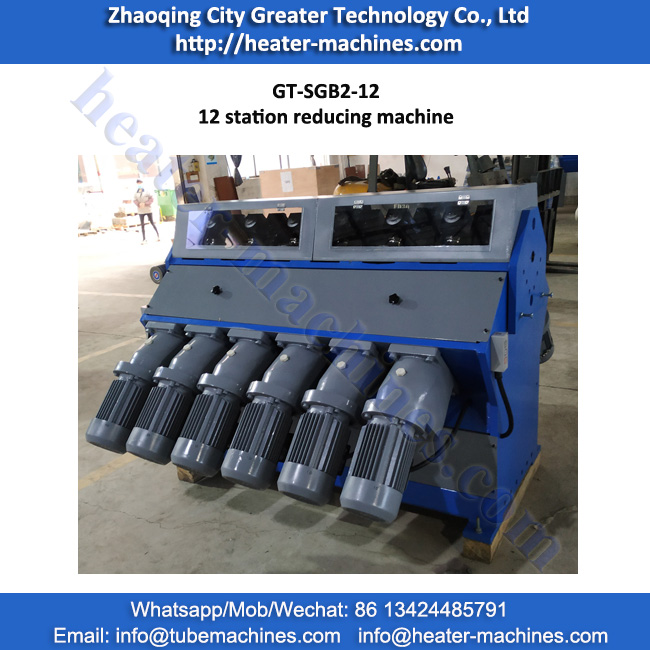

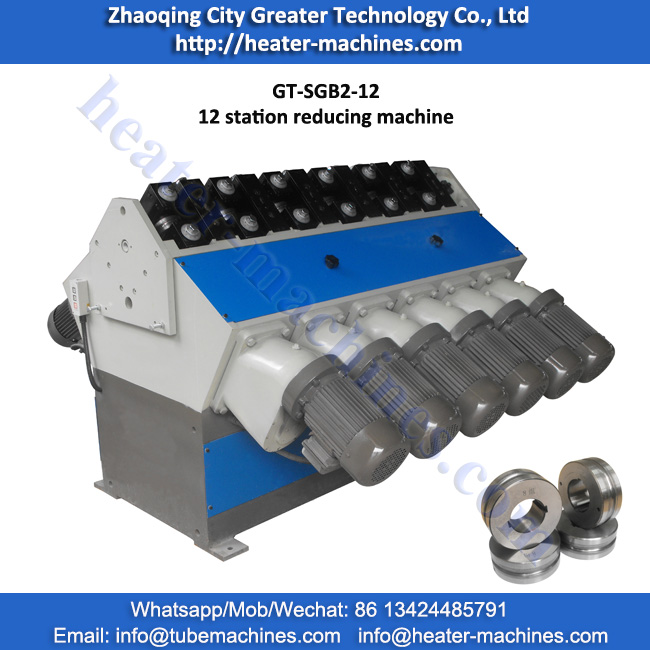

GT-SGB2-12 12 Station Roll Reducing Machine

GT-SGB2-12 12 Station Roll Reducing Machine

Rotating speed of Roller: 60rpm
Roller dimension:outside dia.φ98.5mm ;inside diameter φ45mm; thickness 38mm
Center distance between rollers: 115 mm (with adjustable distance 0.5 mm downward)
Motor power (single): 1.1KW
INQUIRY

Function:
Reduce heater to increase density;

Main features:

(suitable for shrinking round tubes, flat tubes, square , oblate elements etc.)

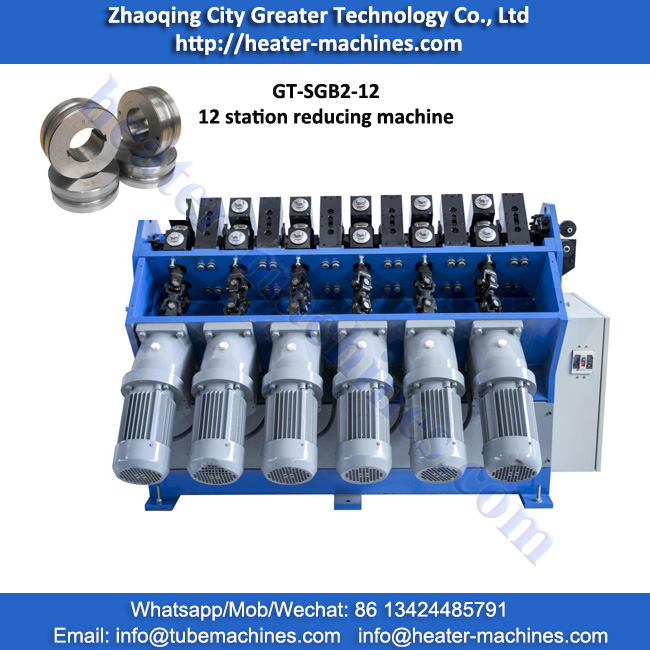

Features: The transmission of this roller reducing machine is mainly designed for large diameter and long heating elements. The gearbox uses multiple sets of gears, connect with motor, to set up a group of gear reduction motors with large torque. Which will avoid when shrink large heater or long heaters, transmission is not strong enough or the motor easily damaged. Between the motor and roller shaft, it connected with gimbal, in this way, the machine will driven smoothly, and torque is increased, so the direct force to the motor and roller shaft will be lower, which will protect the motor.

1. The best diameter to reduce: 3-25 (mm);
2. The best length to reduce: 30-4000(mm);
3. Machine structure: Whole/separate machine (according to customers' order);
4. Transmission structure: Double Cardan shaft;
5. Can match with tungsten carbide roller, high speed roller and Cr12Mov roller;
6. Can make 8-16 groups, the 12 group mainly have in stock, other groups need to be customized;

Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;

Information need for order SG12B roll reducing machine:
Tube diameter before and after reduce, such as Φ14-12mm
Length before reduce
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

12 station rolling machine

GT-SGB2 style reducing machine Main models and technical parameters

Item 型号

GT-SGB2

8 Group

8组

10 Group

10组

12 Group

12组

14 Group

14组

16 Group

16组

18 Group

18组

length to reduce (mm)

最佳缩管管长(mm)

30-1500

30-2000

30-3000

30-4000

Diameter to reduce

最佳缩管管径(mm)

3-10

3-12

3-14

3-16

3-20

3-25

Material of roller

模具材质
