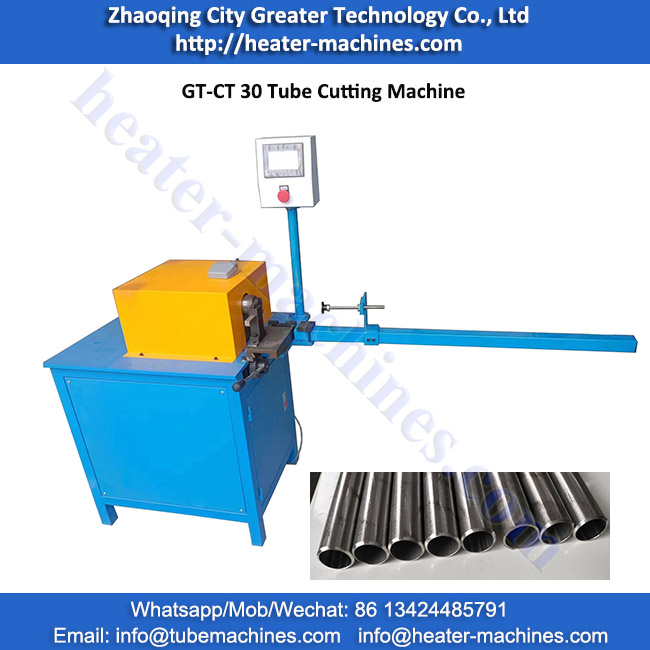

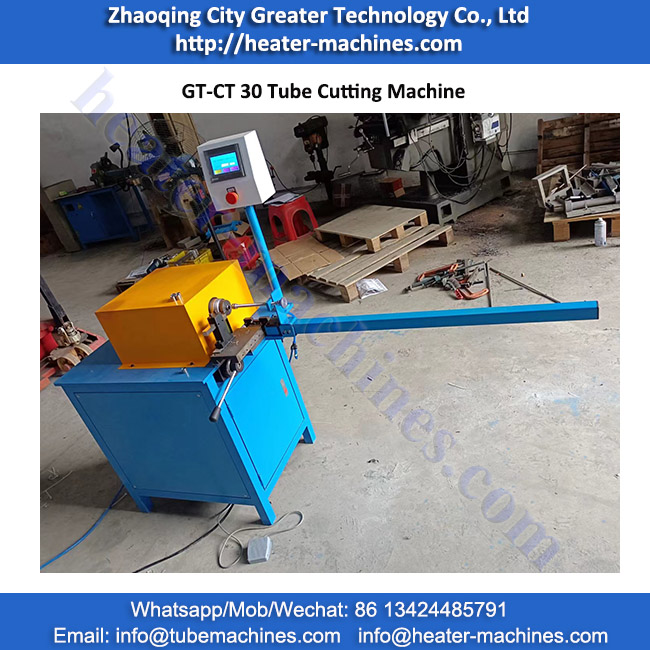

GT-CT30 Tube Cutting Machine

Item No.:GT-CT30
Motor Power: 380V 50HZ 750W
Max Inner Diameter: Φ30mm
Air supply: 0.6Mpa clean compressed air
INQUIRY

GT-CT30 Tube Cutting Machine is basically the same with GT-CT15 Tube Cutting Machine.

It is suitable for cutting larger tubes. Principal axis, axle box and elastic chucks are also larger. Motor power is added to 0.75 KW. The limit-position equipment is equipped with guide mechanism to decrease the vibration of cut tubes.

power: 0.75KW

cutting speed: according to the specification of the tubes, usually about 10000 pcs / 8 hour

tubes can be cut: Φ5-Φ30mm are ok

motor power: 3phase 380V 50HZ or according to customer

Main structure and Performances

GT-CT15(30) tube cutting machine: Manual operating machine is designed to meet the requirements of many sizes and small quantity of pipes cutting (such as cartridge heaters). The machine uses elastic chuck to clamp, so that it can change the chuck (specification) more quickly and conveniently. GT-CT15(30) tube cutting machine suitable for copper pipes, iron pipes, stainless steel pipes, aluminum pipes, etc.

Main models and technical parameters

model

diameter/length

productivity

speed

power

air supply

size

weight

GT-CT15

GT-CT30

Ф5-15mm;
