Function:
Straighten the coil tube auto, and auto cut the tube according to the length need. Machine suitable for coil copper tube, aluminum tube to straight and cut.
Application:
Copper coil tube straight and cut, such as copper water heater produciton.
Main Data:
1. Suitable OD of tube: Φ4-Φ19mm;
2. Wall-thickness: 0.2-2.0mm;
3. Feeding speed: 0-60mm/min;
4. Cutting method: rotary cutting;
5. Min length to cut: 25mm;
6. Power supply: 3phase 380V, 50HZ or according to order;
7. Air supply: 0.4-0.8Mpa clean compressed air;

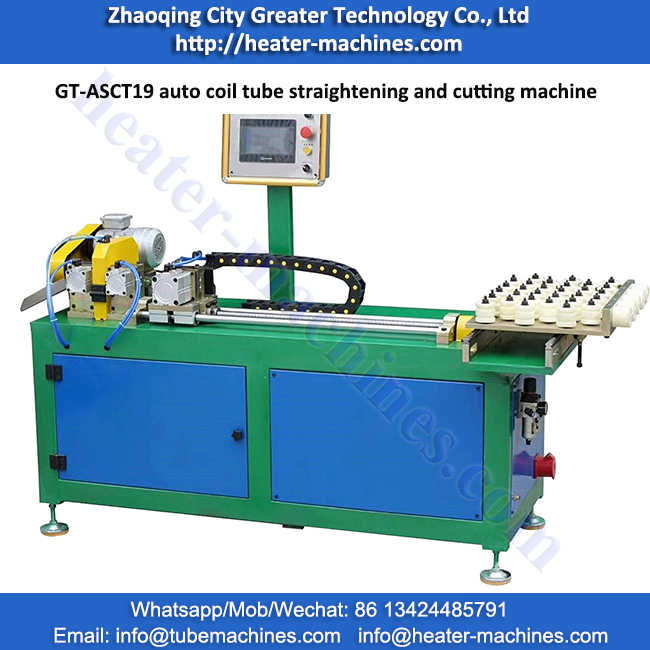

Information need for order GT-ASCT19 auto coil tube straightening and cutting machine:
