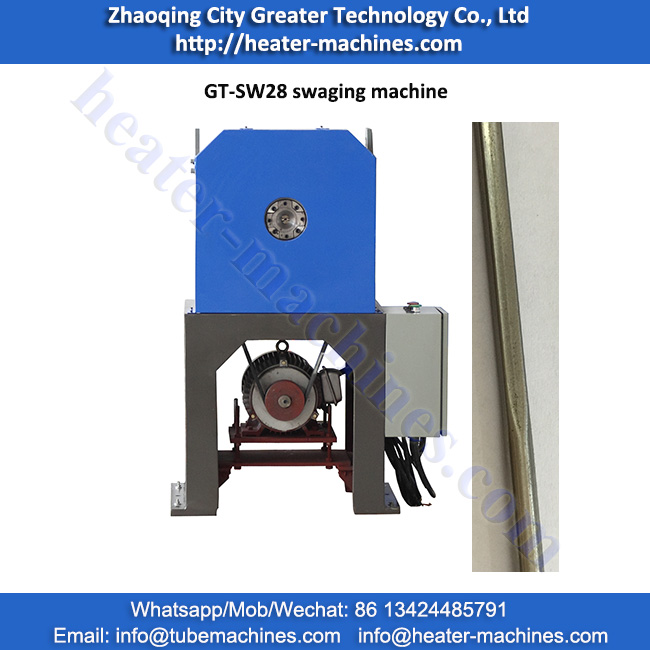

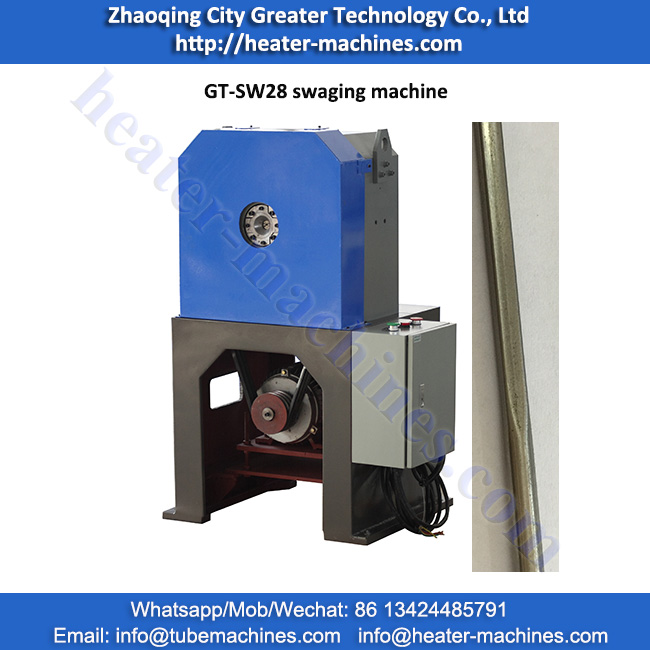

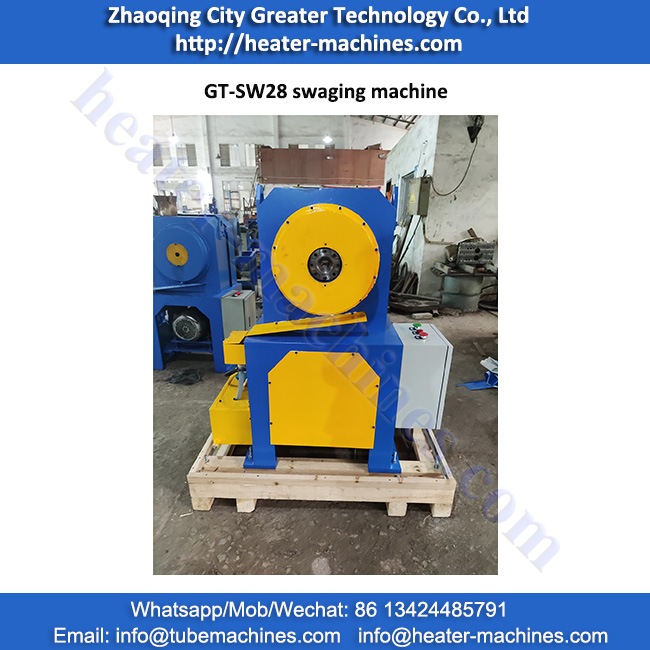

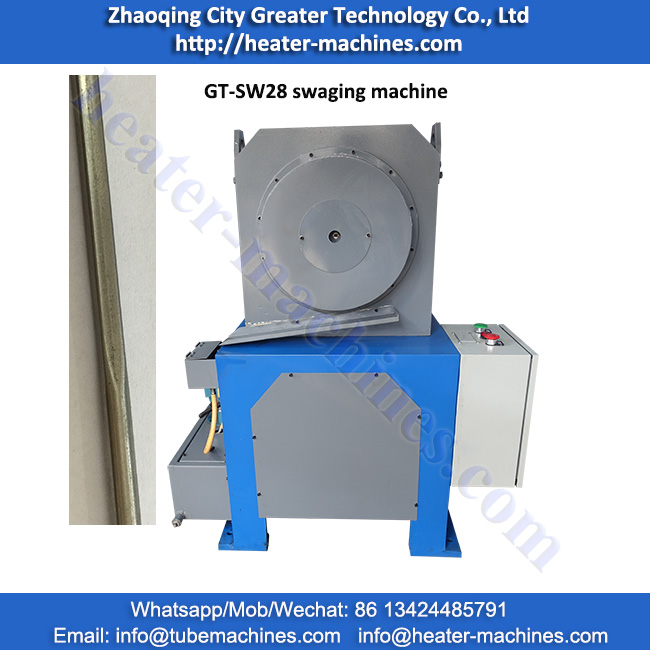

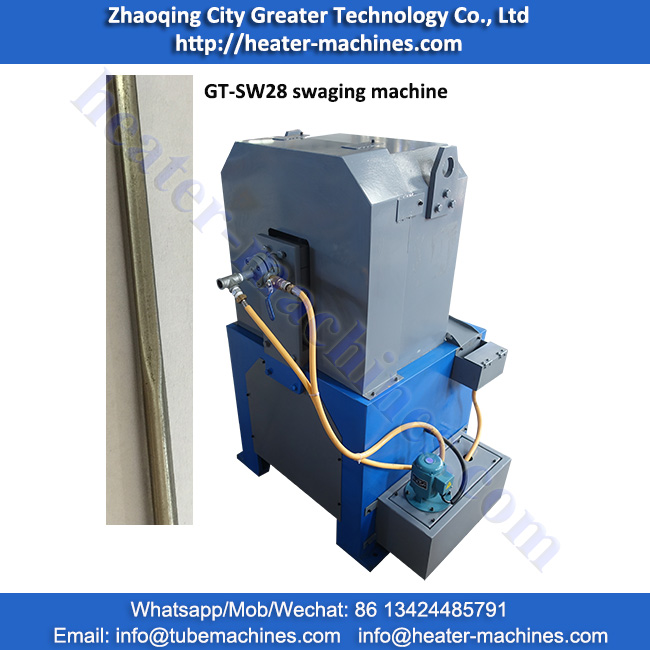

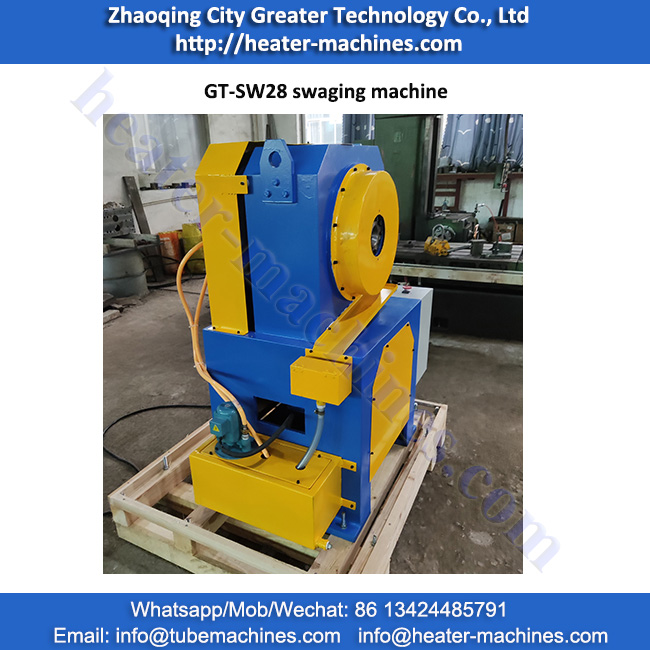

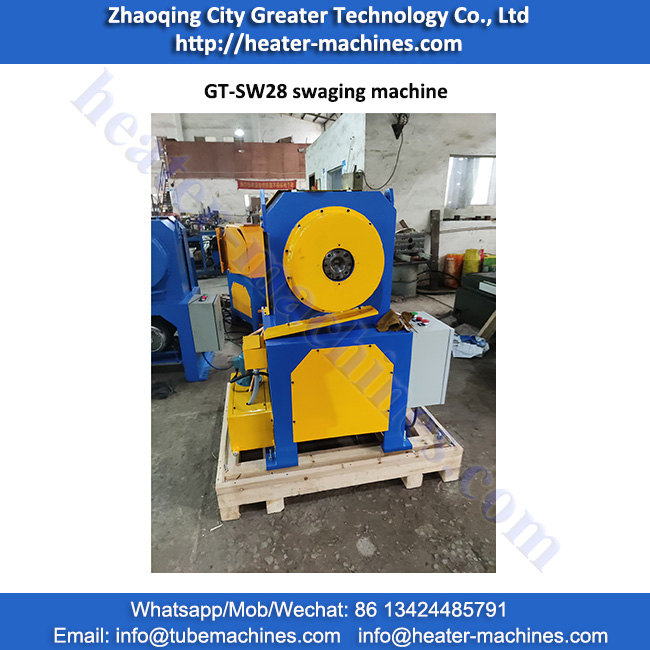

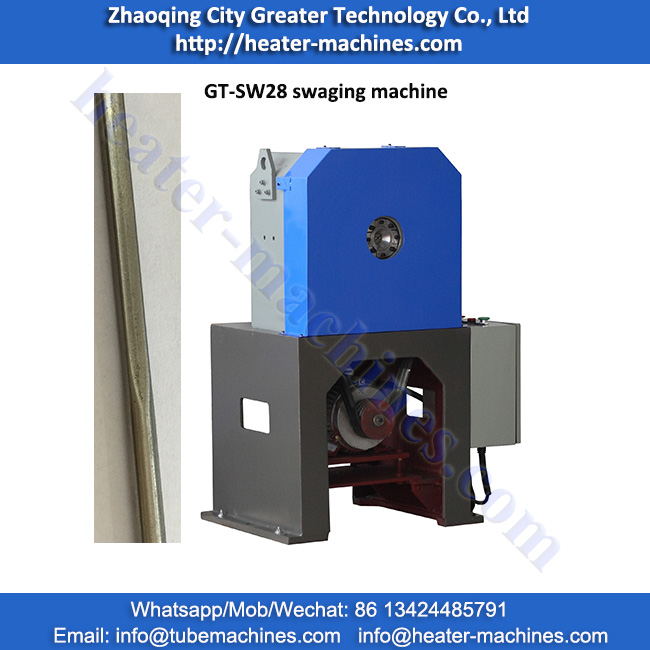

GT-SW28 Hammer Roll Reducing Machine

Item No:GT-SW28
Maximum reduced-roll diameter: Φ18mm
Minimum reduced roll length: 60mm
Motor power: 380V 50HZ 6KW
INQUIRY

Function:
* Reduce flat heater, square heater, to increase density;
* Mold change easy, maintain easy;
* Small size in nice design.
Application:
Suitable for hot runner heater reducing.
Information need for order GT-SW28 swaging machine:
• Tube size before and after reduce
• Length before reduce

• Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

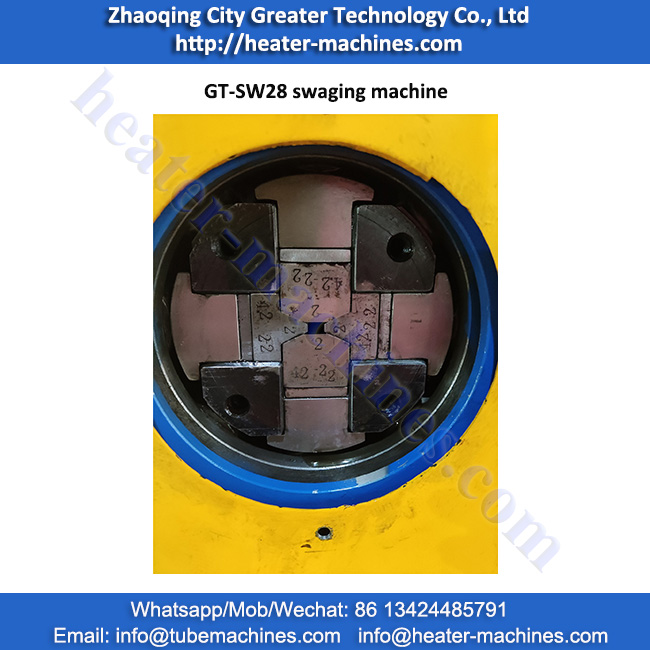

GT-SW28 hammer reducing machine, specially for reducing square heaters, rectangular heaters. The mold is in four pieces, which install on the shaft. It is an ideal equipment to manufacture high density flat shape hot runner heaters.

Main models and technical parameters

型号 Mode	适用管径 Tube diameter	最小缩管长度 Minlength to reduce	电源/功率 power	尺寸 size	重量 weight
GTDG250	2-15mm圆管、方管、扁管、橢圆管 2-15mm round/square/flat/elliptical pipes	100mm	380V 50HZ 4000W	120010001200mm	500KG
GT-SW28	2-8mm方管、扁管、橢圆管 2-8mm square/flat/elliptical pipes	100mm	380V 50HZ 4000W	8008001300mm	800KG
GT-SW-15/30	1.5-30mm圆管 1.5-30mm round pipes	50mm	380V 50HZ 5.5KW\7.5KW	120010001200mm	600KG
