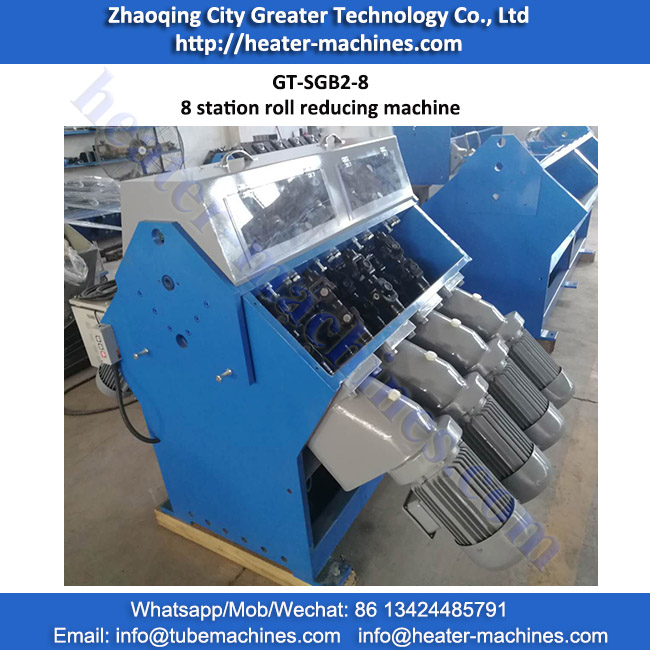

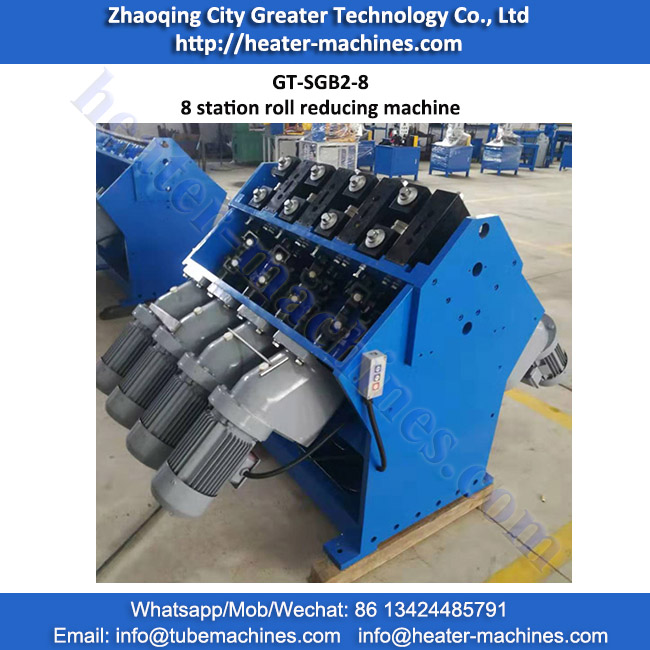

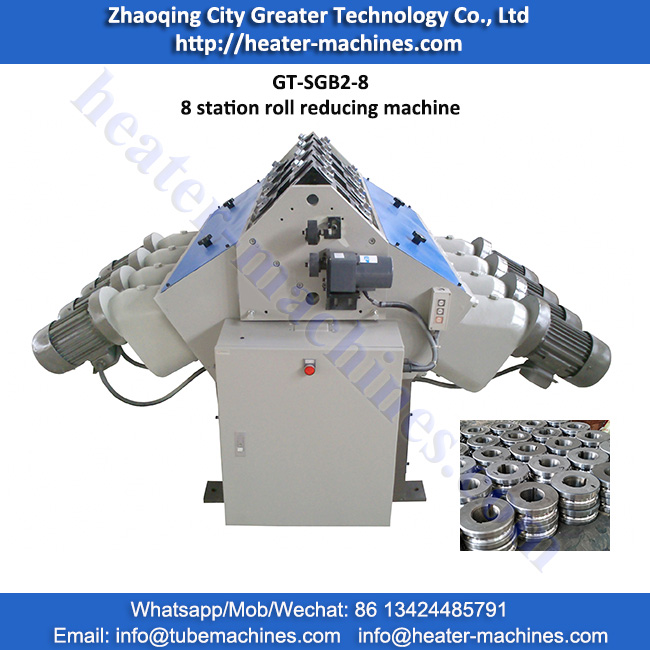

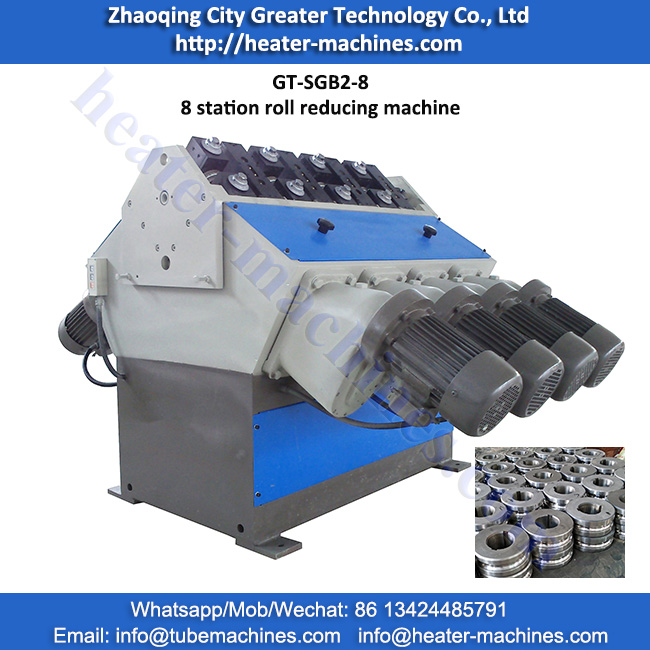

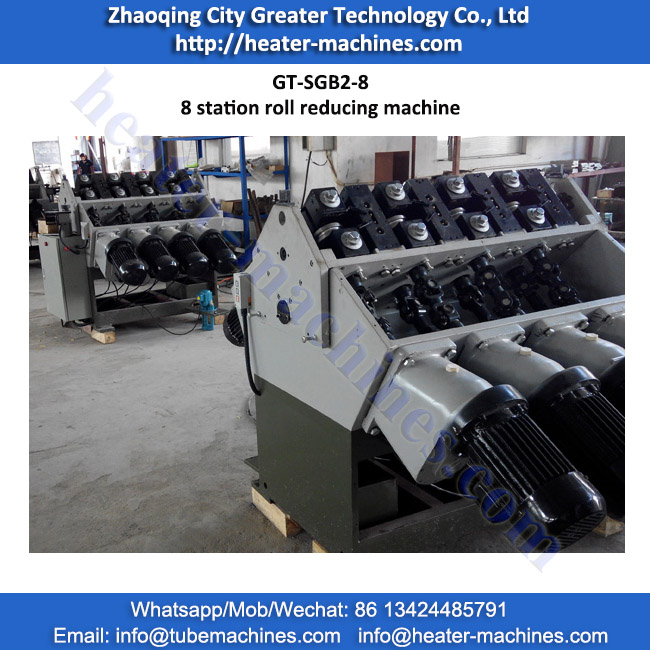

GT-SGB2-8 8 Station Roll Reducing Machine

  • Rotating speed of Roller: 60rpm
  • Roller dimension:outside dia.φ98.5mm ;inside diameter φ45mm; thickness 38mm
  • Center distance between rollers: 115 mm (with adjustable distance 0.5 mm downward)
  • Motor power (single): 1.1KW
  • INQUIRY

Function:
Reduce heater to increase density;


Features:
Large power, single power can be 1.1kw,1.5kw,2.2kw according to order;
Large torque, large power, more suitable for high density tubes, large tubes and long tubes;
The best reference range to shrink (mm): Φ4-Φ25mm; length recommend shorter than 4 meters (within the reference range, the life of the equipment will be longer). Φ6-Φ16mm; if Φ 8-12mm, recommend length within 2 meters, if smaller thanΦ8mm, can reduce 3 meters, if diameter larger thanΦ12mm, length recommend shorter than 2 meters (within the reference range, the life of the equipment will be longer).
Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;
Suitable tube's shape reduce: round, oblate, square shape;
Shrinking speed: uniform speed, non-uniform speed (according to the demand of customer).
Change roller or roll assemble can reduce different diameter;
Can match with our feeding machine to increase of efficiency;
Can match with our marking mechanism for mark your brand heaters.


Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;


Information need for order GT-SGB2-8 roll reducing machine:
Tube diameter before and after reduce, such as Φ8-6.5 mm
Length before reduce
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)


B style reducing machine Main models and technical parameters

Item

GT-SG-B

8 Group

8组

10 Group

10

12 Group

12

14 Group

14

16 Group

16

18 Group

18

length to reduce (mm)

最佳缩管管长(mm)

30-1500

30-2000

30-3000

30-4000

30-5000

30-6000

Diameter to reduce

最佳缩管管(mm)

3-15

3-18

3-20

3-25

3-30

3-30

Material of roller

模具材质

tungsten carbide,high speed steel,Cr12Mov

合金,高速钢,模具钢

tungsten carbide,high speed steel,Cr12Mov

合金,高速钢,模具钢

tungsten carbide,high speed steel,Cr12Mov

合金,高速钢,模具钢

tungsten carbide,high speed steel,Cr12Mov

合金,高速钢,模具钢

tungsten carbide,high speed steel,Cr12Mov

合金,高速钢,模具钢

tungsten carbide,high speed steel,Cr12Mov

合金,高速钢,模具钢

Single power (KW)

单组功率/总功率(KW)

1.1

1.1

1.1/1.5

1.1/1.5/2.2

1.1/1.5/2.2

1.1/1.5/2.2

Total power (KW)

率(KW)

Single power * Group

单组功率*段数

Single power * Group

单组功率*段数

Single power * Group

单组功率*段数

Single power * Group

单组功率*段数

Single power * Group

单组功率*段数

Single power * Group

单组功率*段数

Transmission structure (gimbal)

传动结构万向

Car transmission

汽车传动

Car transmission

汽车传动

Car transmission

汽车传动

Car transmission

汽车传动

Car transmission

汽车传动

Car transmission

汽车传动

Reducing speed m/min)

缩管速度:(m/min)

10-20 Optional

10-20可选

10-20 Optional

10-20可选

10-20 Optional

10-20可选

10-20 Optional

10-20可选

10-20 Optional

10-20可选

10-20 Optional

10-20可选

Transmission (motors) warranty

传动保质(减速电机)

10 years

10

10 years

10

10 years

10

10 years

10

10 years

10

10 years

10

Machine structure

机器结构

Separate

分体

Separate

分体

Whole/separate

整体/分体

Whole/separate

整体/分体

Whole/separate

整体/分体

Whole/separate

整体/分体

Volume (L*W*H) mm

长*宽*高mm

1300*1700

*1300

1550*1700

*1300

1750*1700

*1300

2000*1700

*1300

2250*1700

*1300

2500*1700

*1300

Net Weight 重(KG)

1500

2000

2500

3000

3500

4000


8 station rolling mill machine
