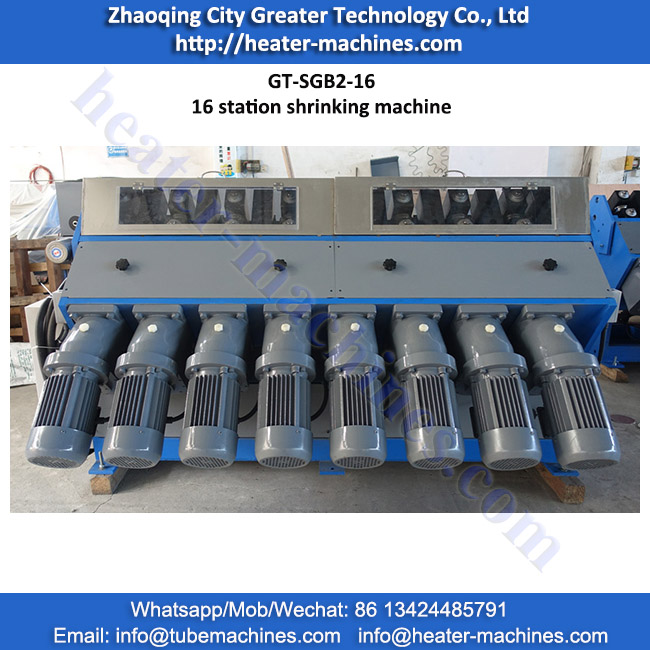

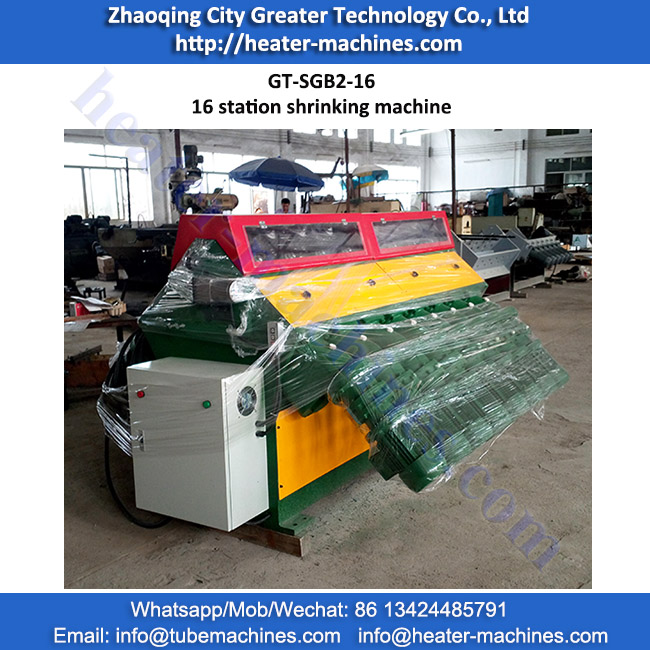

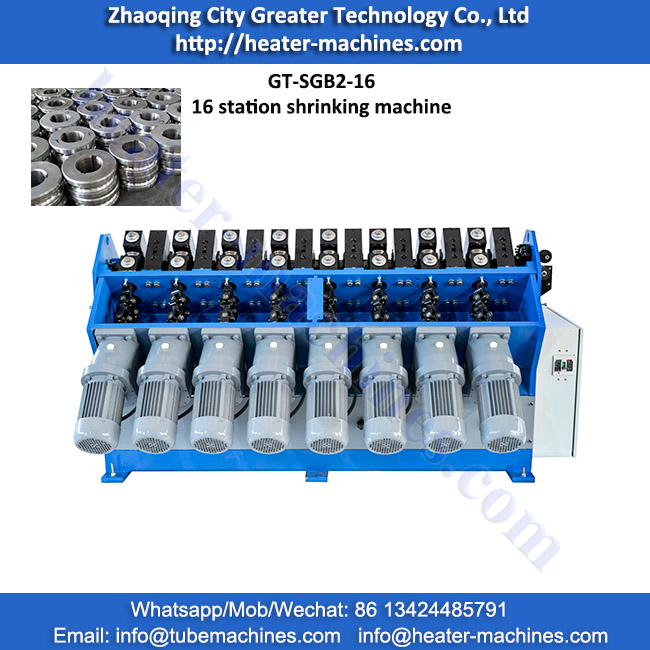

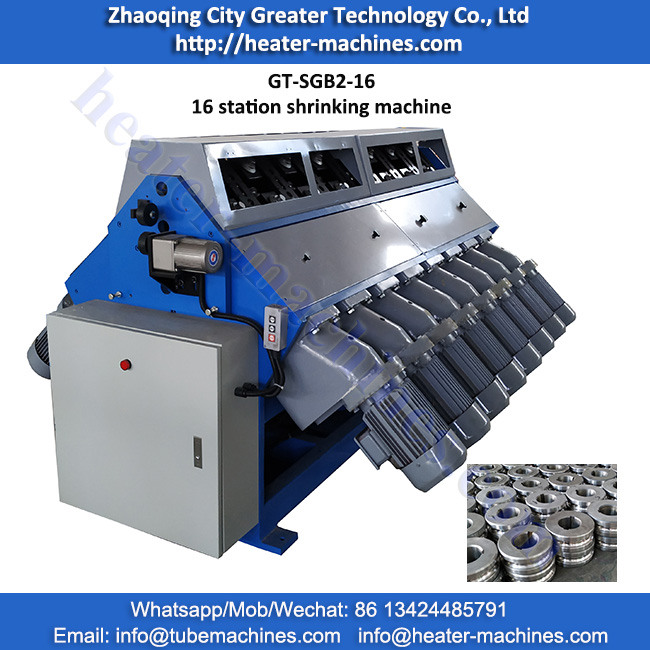

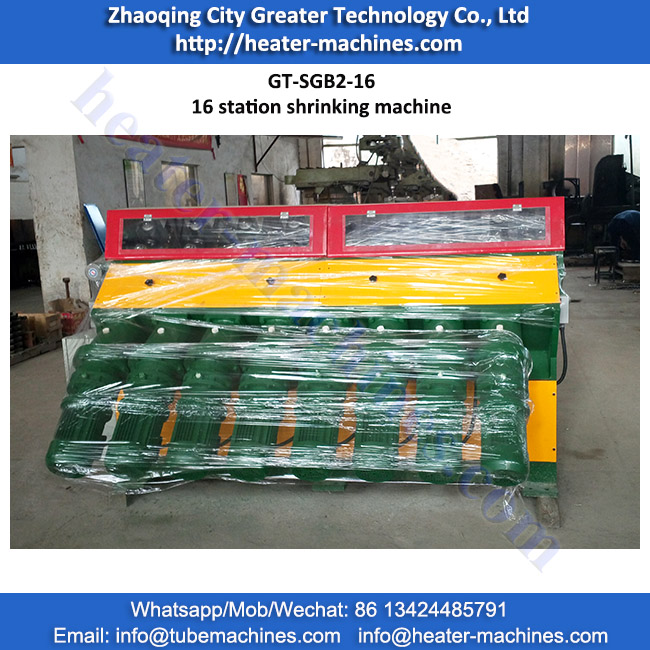

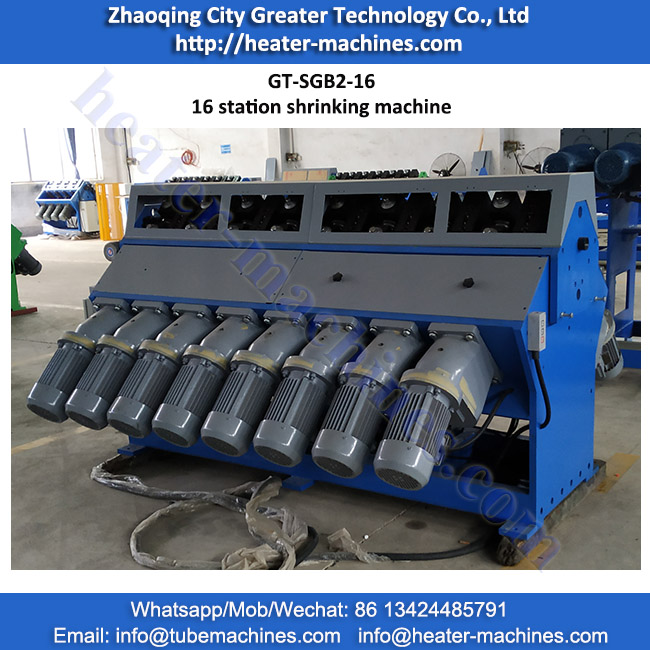

GT-SGB2-16 16 Station Roll Reducing Machine

GT-SGB2-16 16 Station Roll Reducing Machine

Item No.:GT-SGB2-16
Roller Size: φ98.5×φ45×38mm
Center distance between rollers: 115 mm (with adjustable distance 0.5 mm downward)
Motor power (single): 1.1KW/1.5KW/2.2KW (according to order)
INQUIRY

Function:
Reduce heating elements to increase density;

Features:

Large power, single motor power can be 1.1kw,1.5kw,2.2kw (custom according to order);

Large torque, large power, more suitable for high density tubes, large tubes and long tubes;

Referring to the advantages of same type imported machines, and combining with the national conditions to improve and design, use gear for deceleration.

The best reference range to shrink (mm): Φ4-Φ28mm;(within the reference range, the life of the equipment will be longer).

Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;

Suitable tube's shape: round tubes, flat tubes, oblate tubes, composite tubes.

Shrinking speed: uniform speed, non-uniform speed (according to the demand of customer).

The machine with straightening device on it, no need to straighten again, the surface of the shrink tube is smooth and round.

high efficiency of shrink tube, suitable for production of large quantity of electric heating tube.

according to different requirements, can choose a hard alloy rollers or Cr12Mor rollers.

When reduce different diameters, change related rollers or roll assembles will be ok.

can match with our roll reducer auto marking mechanism, mark letters or numbers on the heater.

Machines can be choose with PLC or not.

Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;

Information need for order GT-SGB2-16 roll reducing machine:
Tube diameter before and after reduce, such as Φ19-16mm;
Length before reduce;
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz);

Item 型号

GT-SGB2

8 Group

8组

10 Group

10组

12 Group

12组

14 Group

14组

16 Group

16组

18 Group

18组

length to reduce (mm)

最佳缩管管长(mm)

30-1500

30-2000

30-3000

30-4000

30-5000

30-6000

Diameter to reduce

最佳缩管管径(mm)

3-15

3-18

3-20

3-25

3-30

Material of roller

模具材质
