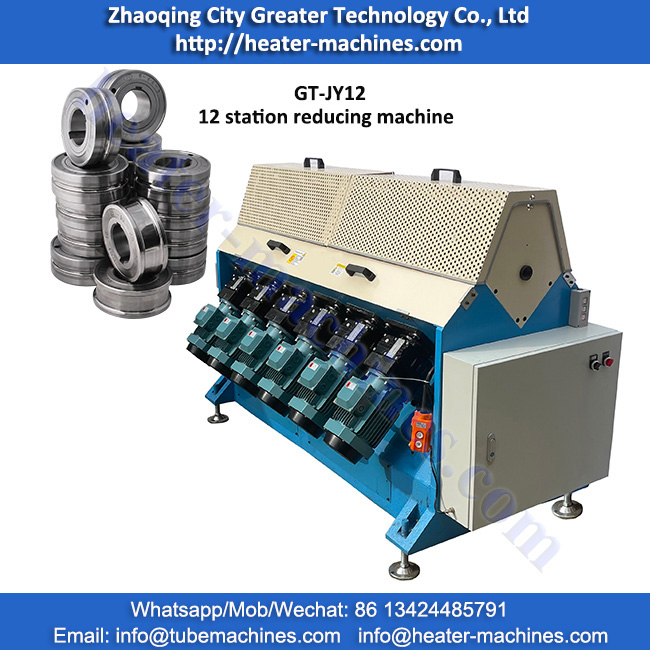

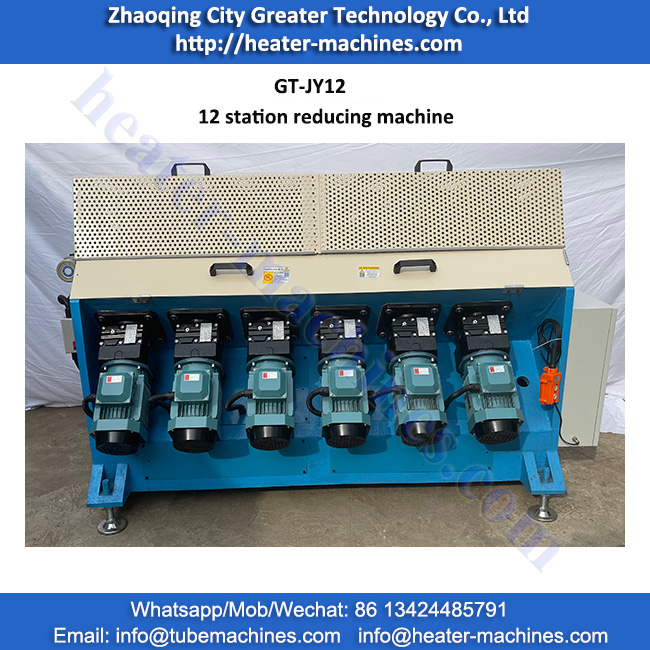

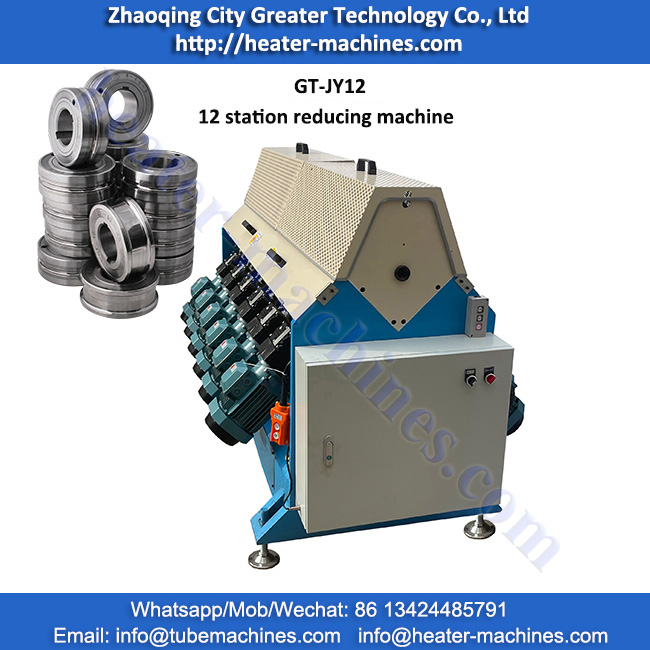

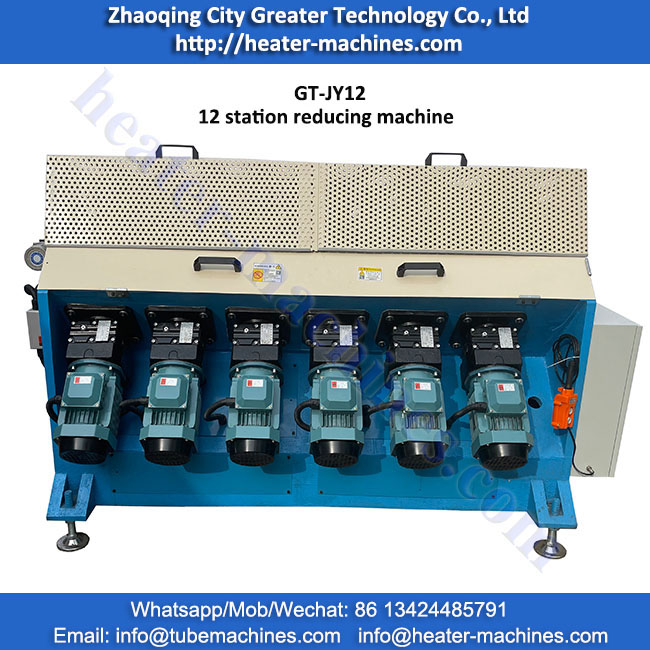

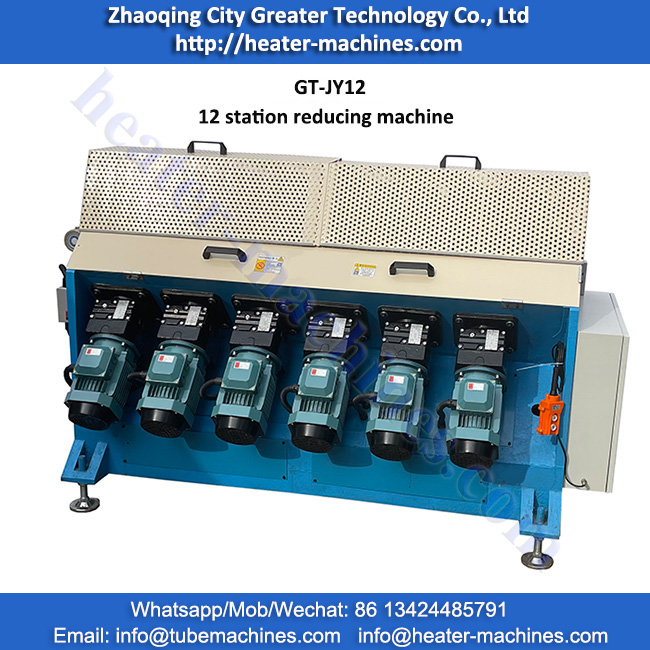

GT-SGB3-12 12 Station Roll Reducing Machine

  • item number: GT-SGB3-12
  • station: 12 station
  • single motor power:0.75/1.1kW
  • speed: uniform speed or un-uniform speed according to order
  • INQUIRY
Function:

Reduce heater to increase density;

Main features:

1. whole casting for body of the machine, ensure stable use in future.;
2. According to different diameters and orders, can make in uniform speed or un-uniform speed;
3. change related rollers can reduce different diameters heaters;
4. When the pipe is blocked, the machine will automatic shutdown;
5. with small size, less noise, easy adjustment;
6. suitable for different materiall metal tubes;
7. change rollers, can reduce round, square, flat heaters.
8. can make in 12 station, 18 station and 21 station.

Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;

Information need for order GT-SGB3-12 roll reducing machine:
Tube diameter before and after reduce, such as Φ10-8.5mm
Length before reduce;
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz);

speed: uniform speed or un-uniform speed;

12 group shrinking machine
