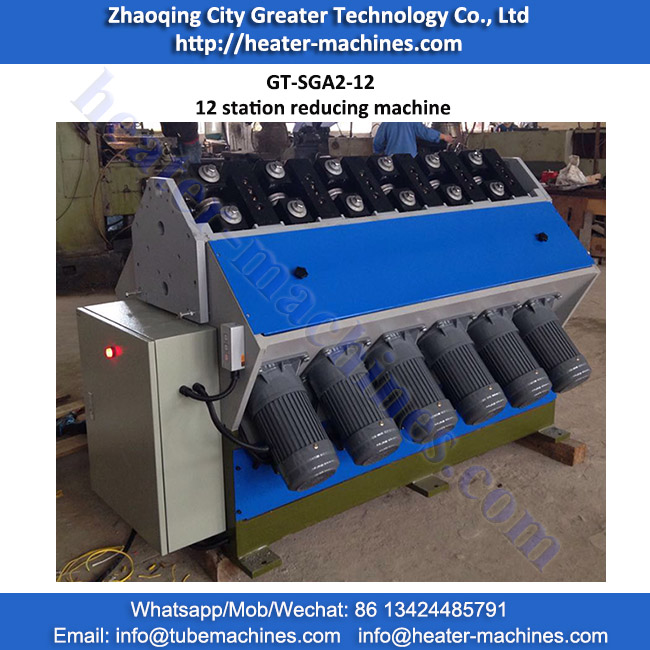

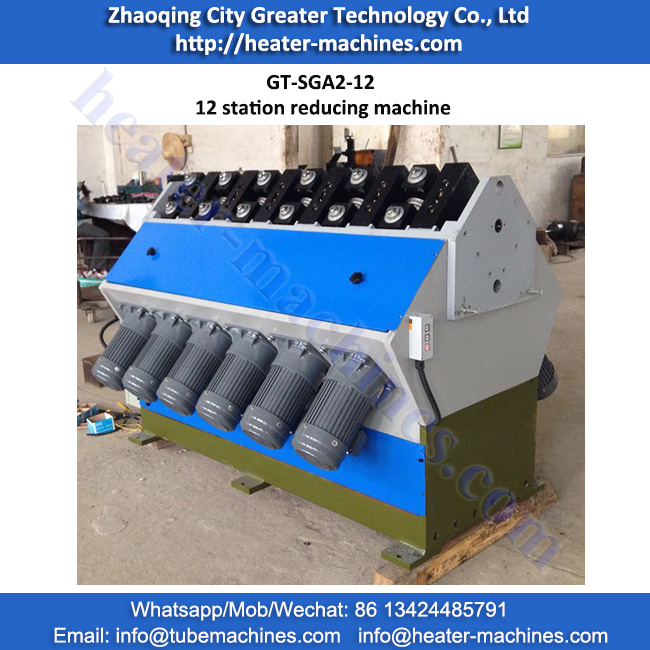

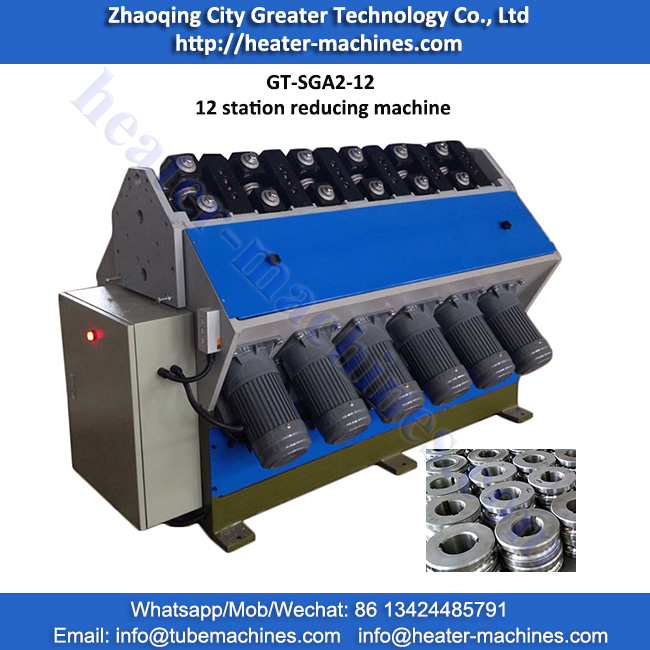

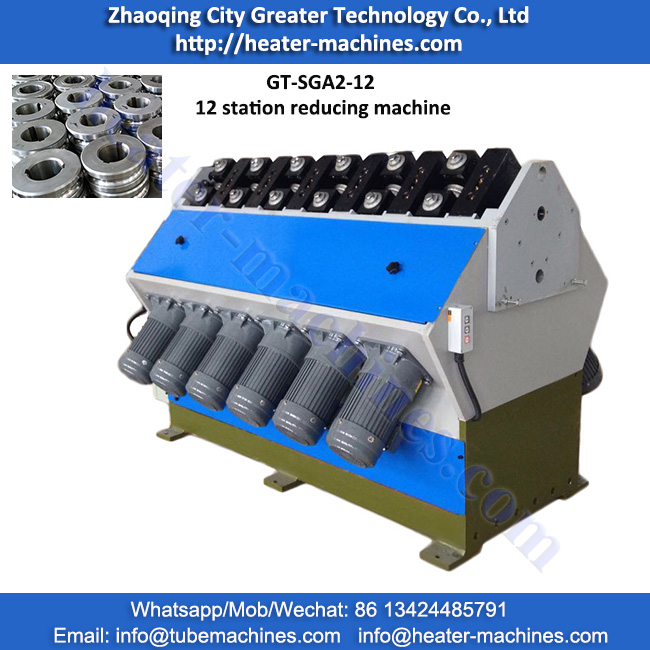

GT-SGA2-12 12 Station Roll Reducing Machine

GT-SGA2-12 12 Station Roll Reducing Machine

Item No: GT-SGA2-12
station: 12 station
single motor power:0.75KW
INQUIRY

Function:
Reduce heater to increase density;
Features:

Main features: (suitable for shrinking small round tubes, flat tubes, square elements etc.)

Features: These kind of machines similar as most reducing machines in the market, mainly for tubular heaters not in long length, and small diameters.

1. The best diameter to reduce: 3-10 (mm);
2. The best length to reduce: 30-2000(mm);
3. Machine structure: Whole/separate machine (according to customers' order);
4. Transmission structure: Cardan shaft;
5. Can match with tungsten carbide roller, high speed roller and Cr12Mov roller;
5. Can make 8-16 groups, the 12 group mainly have in stock, other groups need to be customized;

Application:
Round heater reduce, such as tubular heater.
Information need for order GT-SGA2-12 roll reducing machine:

Tube diameter before and after reduce, such as Φ8-6.6mm
Length before reduce
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

A2 style reducing machine Main models and technical parameters

Item 型号

GT-SGA2-12

8Group

8组

10 Group

10组

12 Group

12组

14 Group

14组

16 Group

16组

18 Group

18组

length to reduce (mm)

最佳缩管管长(mm)

30-1500

30-2000

30-2500

Diameter to reduce (mm)

最佳缩管管径(mm)

3-8

3-10

Material of roller

模具材质
