Resistance Wire Coil Equipment

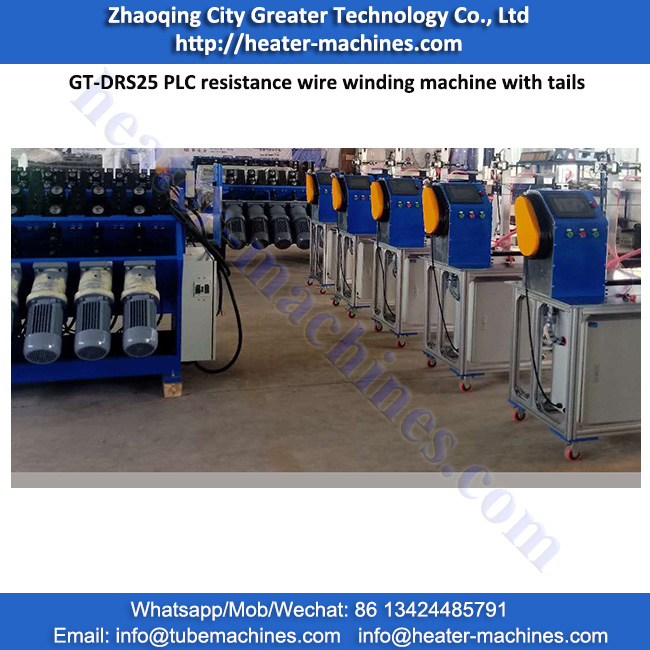

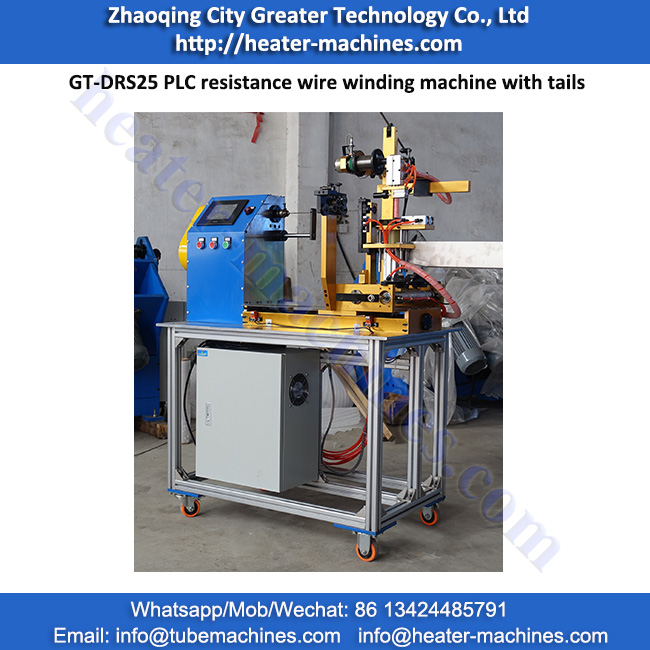

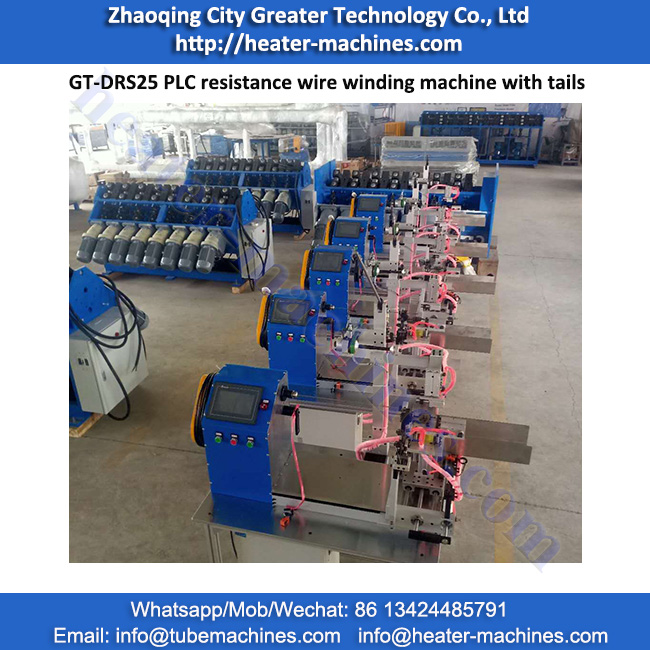

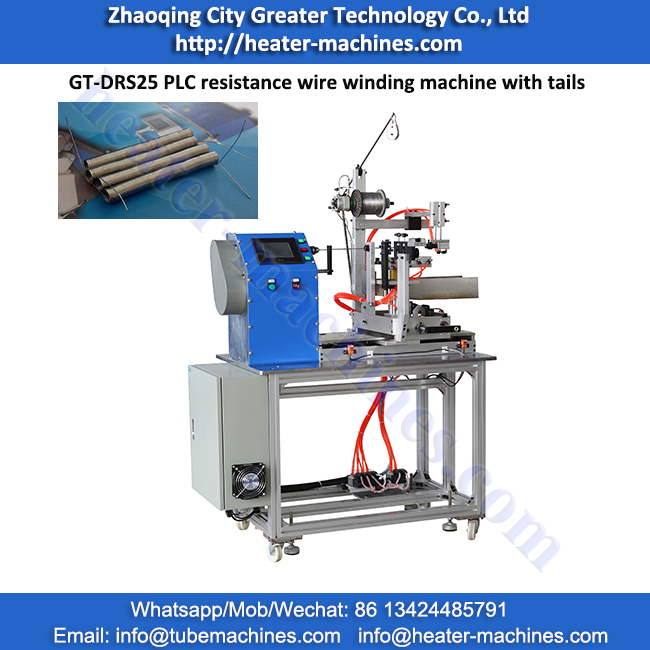

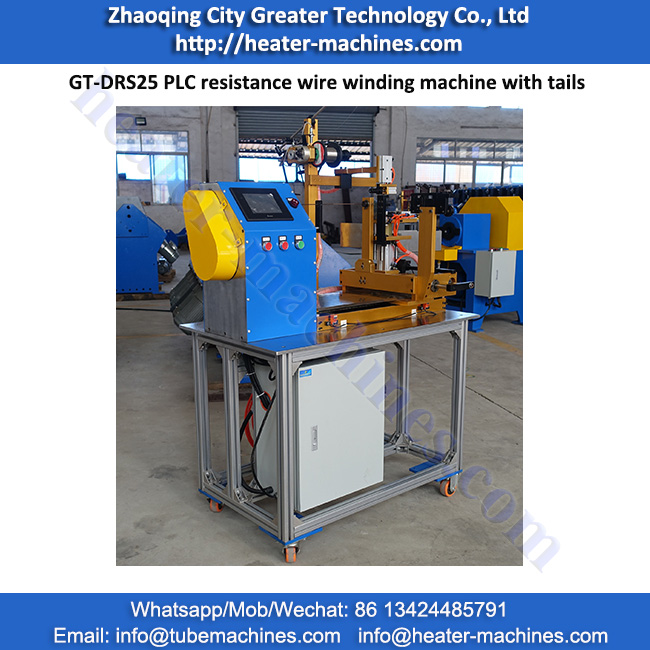

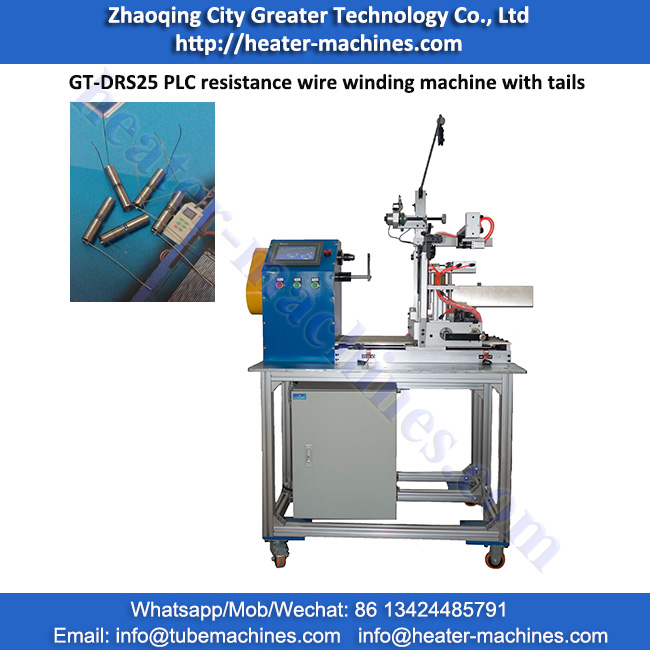

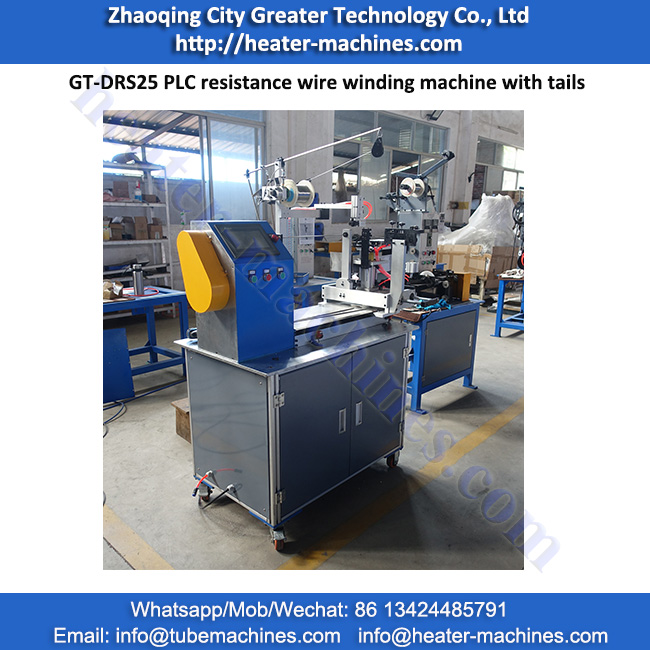

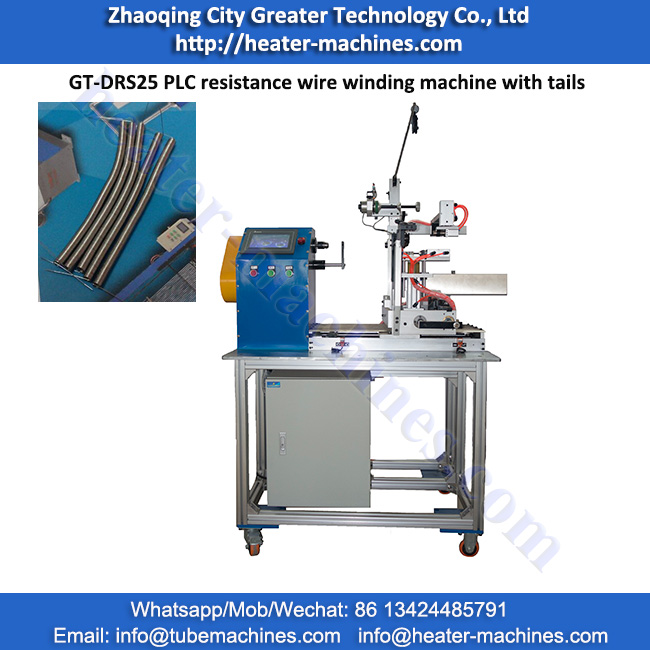

GT-DRS25 PLC Winding Machine With Tails

Item No: GT-DRS25 PLC
mandrel: 2 - 3.5mm
wire diameter:0.15 - 0.6mm
stroke:0 - 450mm
INQUIRY

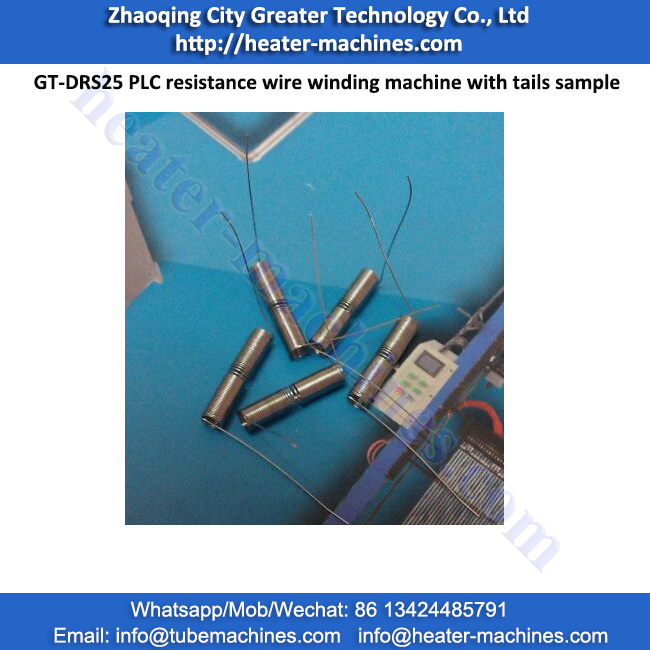

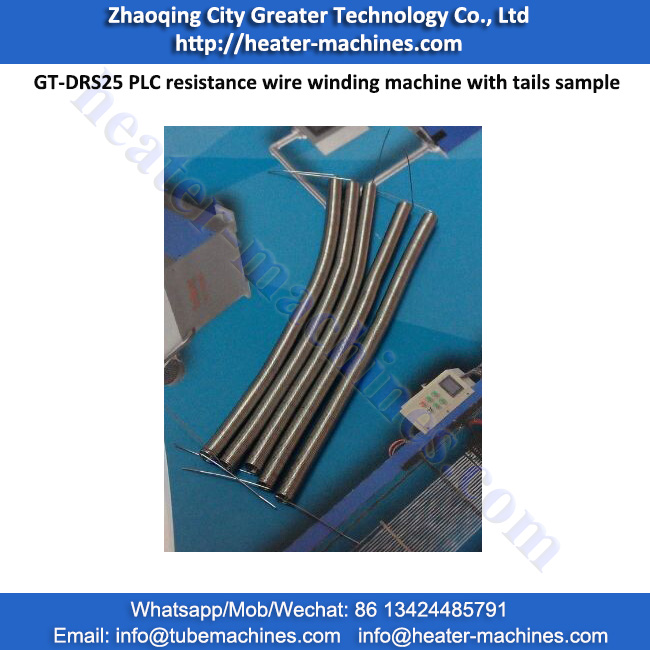

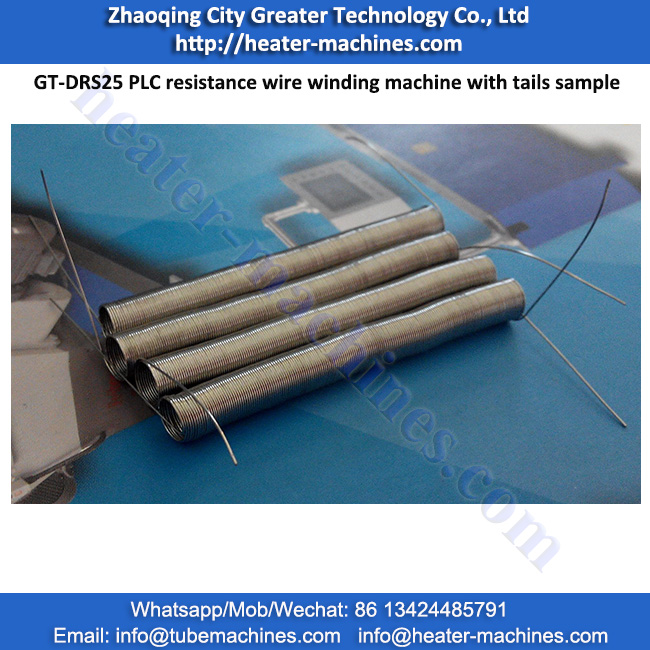

GT-DRS25 PLC keeping ends coiling machine is a new machine developed by our factory for automatic resistance coil winding machine. The machine can automatically keep the resistance wire ends when winding, it doesn’t need to pull the wire ends separately when coiling on the frame. By this way, there will be one step less, so the production capacity is higher. The machine is with stable performance, and simple operation, it adopts PLC, touch screen and servo motor to control. The PLC keeping ends coiling machine can automatic load the resistance wire - starting - winding - stoping - cutting and taking out the resistance wire. Further more, the machine can keep the resistance wire in the ends, which makes no human look after the machine. The machine is widely used in winding resistance for heaters of hair dryer, heaters, heating tubes, dry hand machines and so one.

Advantage:

(1) the density adjusting

(2) to ensure that insufficient pressure, less material, wire broken, wire stuff to automatically stop

(3) process detection, fault diagnosis

(4) diameter mandrel can arbitrarily change

(5) keeping ends, adjustable size

(6) automatic winding ,hands-machine separated

(7) eight winding mode of positive rotation, inversion, fast winding, slowly winding, single wire, multiple wire, long-term wire, short-term wire .

resistance coil machine for hair dryers
