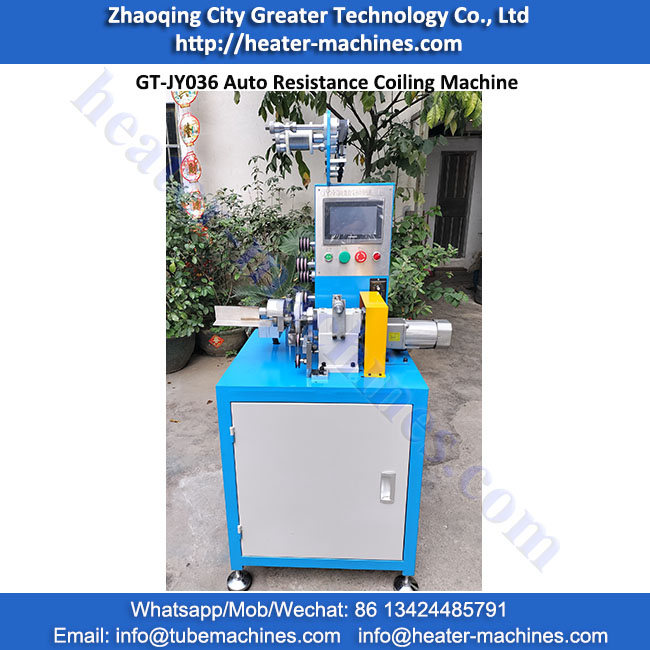

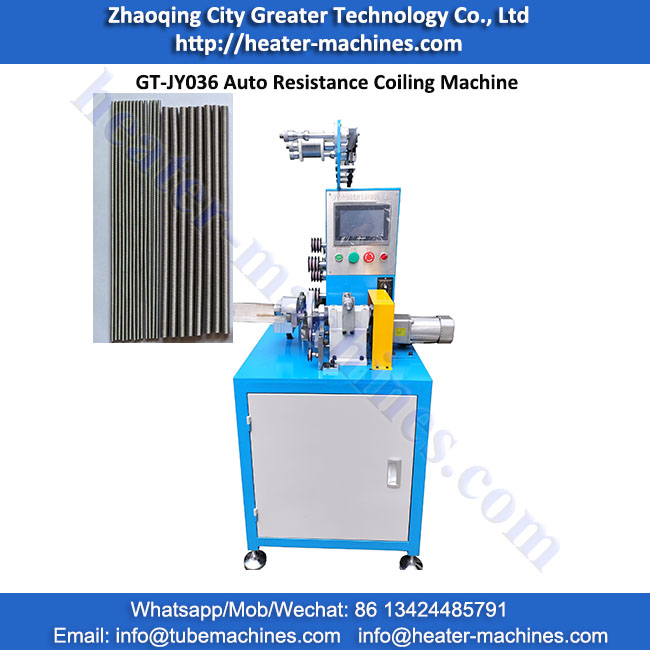

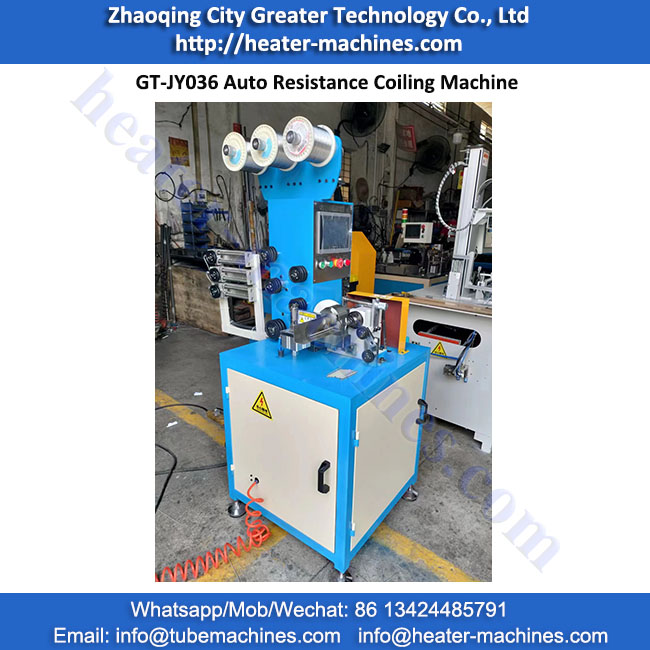

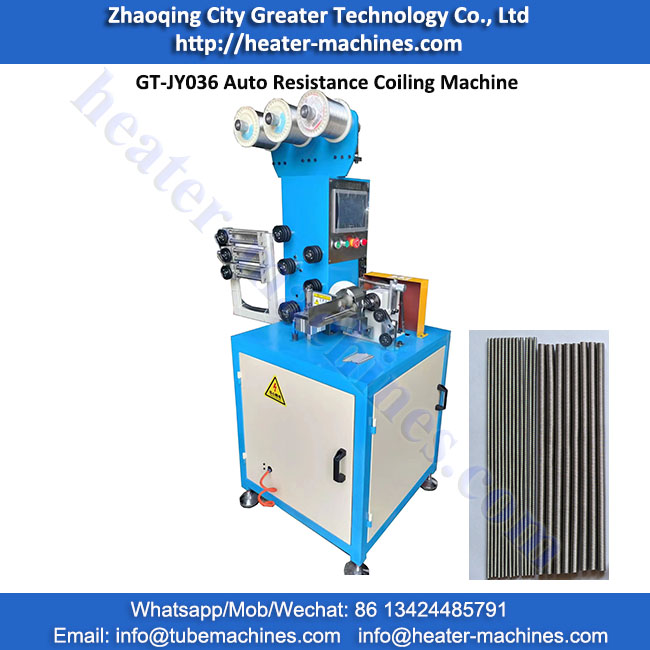

GT-JY036 Auto resistance winding machine

  • Diameter of resistance wire: Φ0.15-Φ0.6mm (for larger wire, pls contact us)
  • Diameter of core axle: Φ1.0-Φ6mm or according to order
  • Power source: 220V 500W
  • wire to coil: 1/2/3 wire
  • INQUIRY
Function:

Auto coil resistance wire into spiral for heating elements.

Main features:

1. nice design with easy operation, improved machine for tubular heater factories;

2. can coil single, double or three wire;

3. Can set the target resistance value to coil;

4. can set target output quantity to coil;

5. can set compensation resistance value on the machine;

6. 10 sets of parameters can be stored, easy adjustment;

7. when lack of wire or wire broken, machine will stop auto;

8. with PLC and trouch screen control, easy operation;

10. can make with servo motor control, machine more stable and accurate.

Application:
Resistance wire coil for tubular heaters, industrial heaters

Information need for order GT-JY036 roll reducing machine:

Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz);

Wire diameter to coil;

Inside diameter to coil;
