Home  >>>  Heater Machinery  >>>  MGO Powder Filling Equipment  >>>   GT-FM18 (8+2+8)18 station filling machine

MGO Powder Filling Equipment

  • GT-FM18 (8+2+8)18 station filling machine
  • GT-FM18 (8+2+8)18 station filling machine
  • GT-FM18 (8+2+8)18 station filling machine
  • GT-FM18 (8+2+8)18 station filling machine
GT-FM18 (8+2+8)18 station filling machineGT-FM18 (8+2+8)18 station filling machineGT-FM18 (8+2+8)18 station filling machineGT-FM18 (8+2+8)18 station filling machine

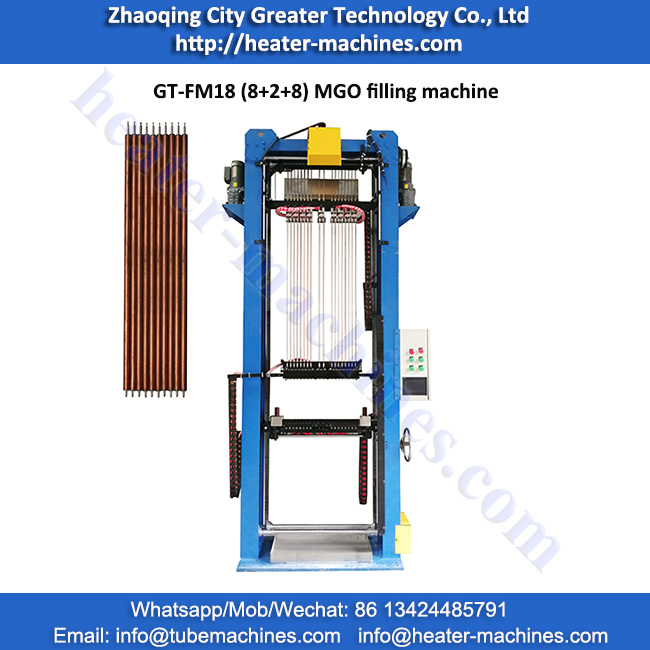

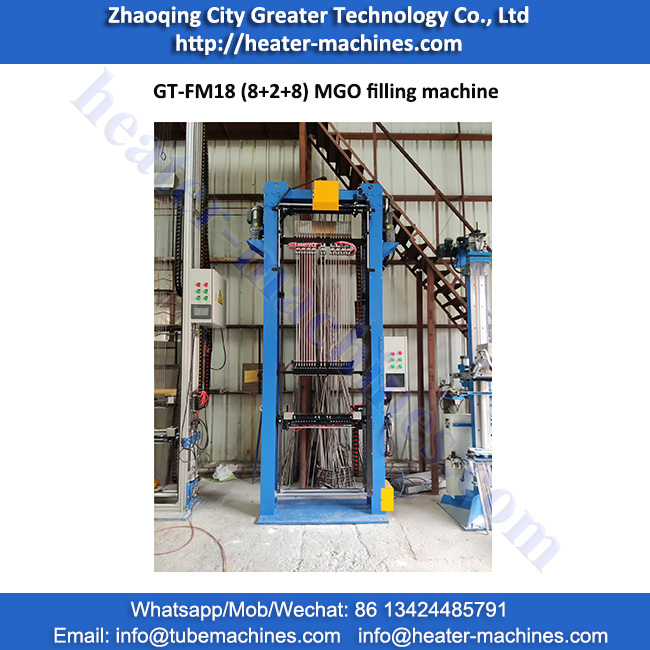

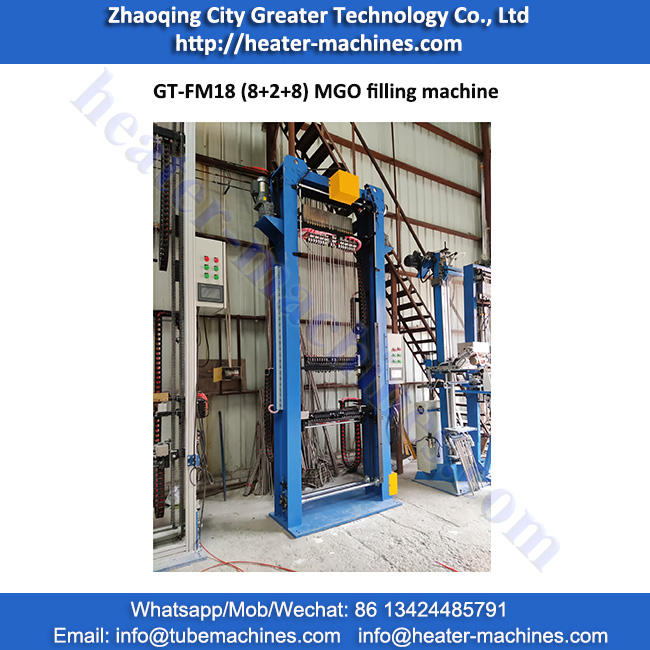

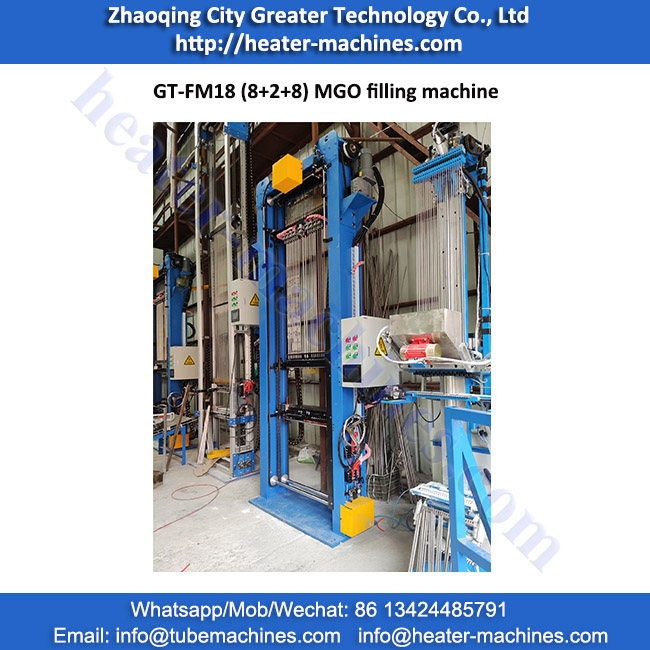

GT-FM18 (8+2+8)18 station filling machine

  • station: 18 stations
  • filling length: 300-8000 mm according to order
  • Air supply: 0.6MPa clean compressed air
  • diameter: with 3 different diameters
  • INQUIRY

Function:

fill MGO powder for tubular heaters;


Application:

suitable for tubular heaters, long heating elements, different diameter heaters to fill MGO powder;


Features:
*** can make in double filling guide tubes (one diameter install on the machine);or three filling guide tubes (different diameters install on the machine);
*** operation in the middle of the machine, easy to operate;
*** length can be custom according to order, it is recommend machine for long heating elements. (filling length in 300-8000mm can be adjustable, according to order);
*** stations: 18 station. (with 3 different diameters on the machine or custom according to order)
*** shape to fill: round tube;

Information need for order for filling machine:
*** length to fill;
*** diameter to fill;
*** wall-thicnkess of the tube to fill;
*** max OD of resistance wire spiral;
*** size of terminal pin head;

GT-FM18 PLC (8+2+8) with 3 different diameters install on the machine, can easy to fill 3 diameters together, or fill 1 or 2 diameters easily.


model

diameter/length to fill

control

vibration

power

air supply

Size(H*L*W)

weight

GT-FM18 PLC - (8+2+8) filling machine

Φ7.5-Φ28.5mm

300mm-8000mm

according to order


PLC+touch screen

mechanical and electromagnetic

380V /50Hz/500W

0.6Mpa

(4500*1700*1000mm)--(176000*1700*1000mm)

800Kg-2000Kg

multi diameter MGO filling machine
