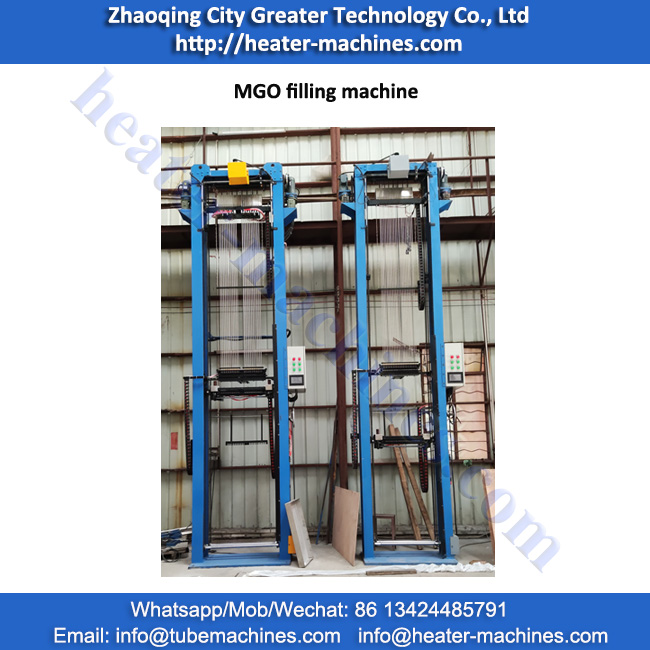

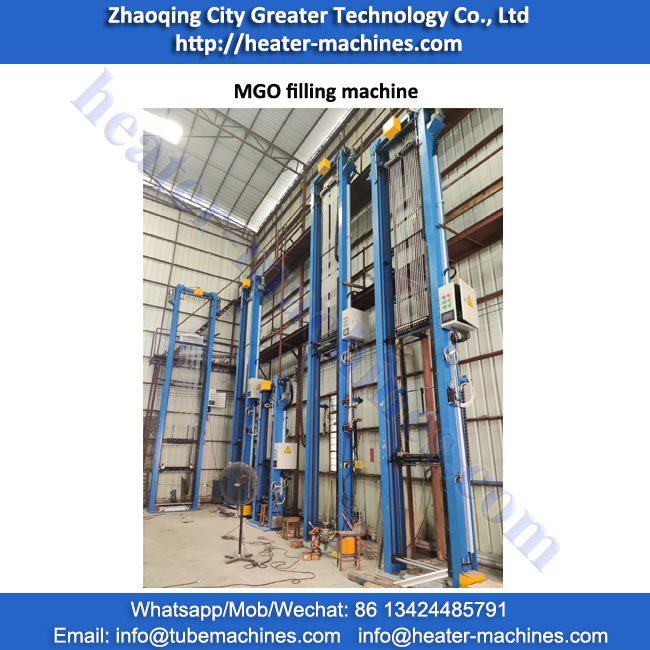

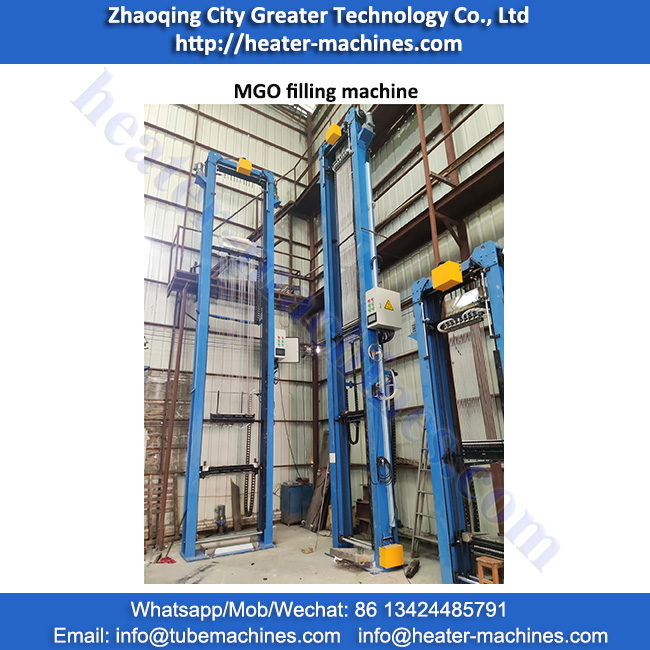

GT-FM12 12 station MGO powder filling machine

Function:

fill MGO powder for tubular heaters;

Application:

suitable for tubular heaters, long heating elements, large diameter heaters to add MGO powder;

Features:
*** can make in double filling guide tubes (one diameter install on the machine);or three filling guide tubes (different diameters install on the machine);
*** operation in the middle of the machine, easy to operate;
*** length can be custom according to order, it is recommend machine for long heating elements. (filling length in 300-8000mm can be adjustable, according to order);
*** stations: 12 station. (one time fill 12 pcs, or custom accroding to order such as 6/8/10/16/24/36/48 etc)
*** shape to fill: round tube;

Information need for order for filling machine:
*** length to fill;
*** diameter to fill;
*** wall-thicnkess of the tube to fill;
*** max OD of resistance wire spiral;
*** size of terminal pin head;

GTFM12-PLC (double guide tubes 6-48 station) MGO powder filling machine, is designed and manufactured according to the characteristics of imported similar machines. The machine is controlled by PLC and Human machine interface (HMI/touch screen), and add guide rail and rotary clamping mechanism. It can make 6-48 different stations, custom according to customers requirement, different diameters, different length. At present the max filling length can up to 8000mm, and max filling diameter is Φ28.5mm.

Due to use PLC and encoder counting device, it can set the length on the machine easily, just enter the actual length need to fill (length of the empty pipe) on the touch screen, the machine will adjust automatically, the adjustment is quicker and more accurate. Besides, the position during filing will be more accurate. There is helical nozzle inside the guide tubes, the exposed of mandrel (hook) can be adjusted by the motor. It is a recommend filling machines for tubular heaters.
