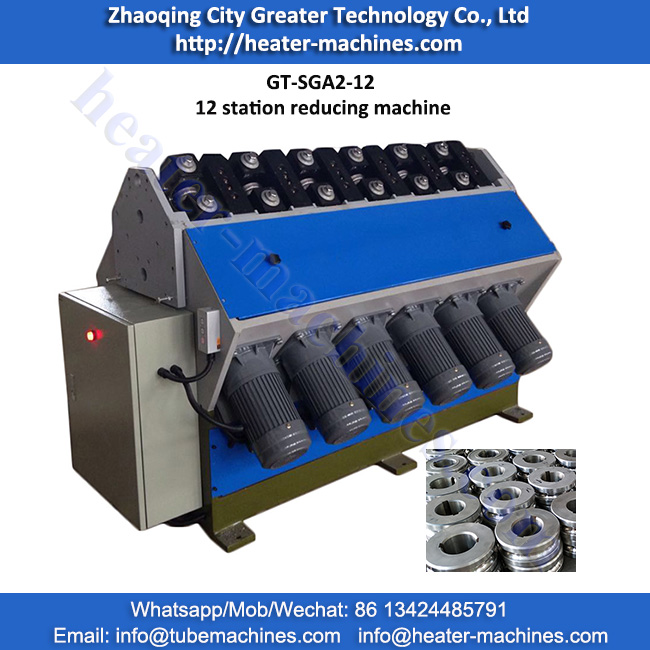

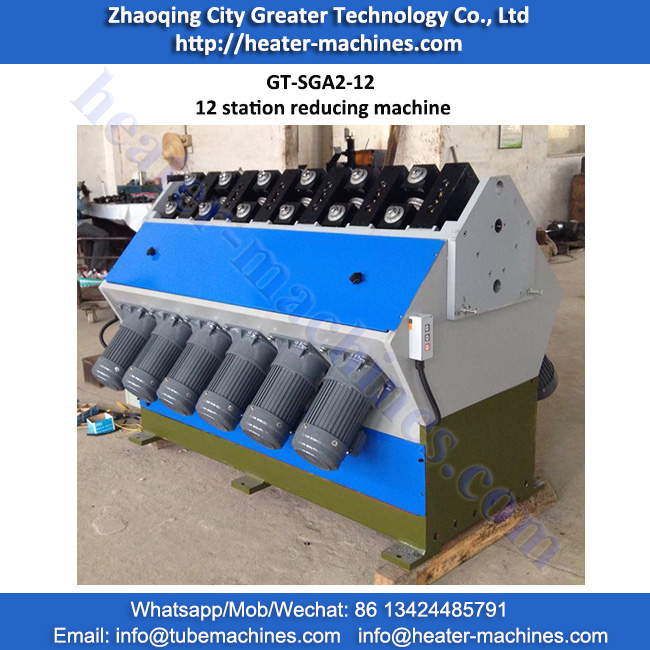

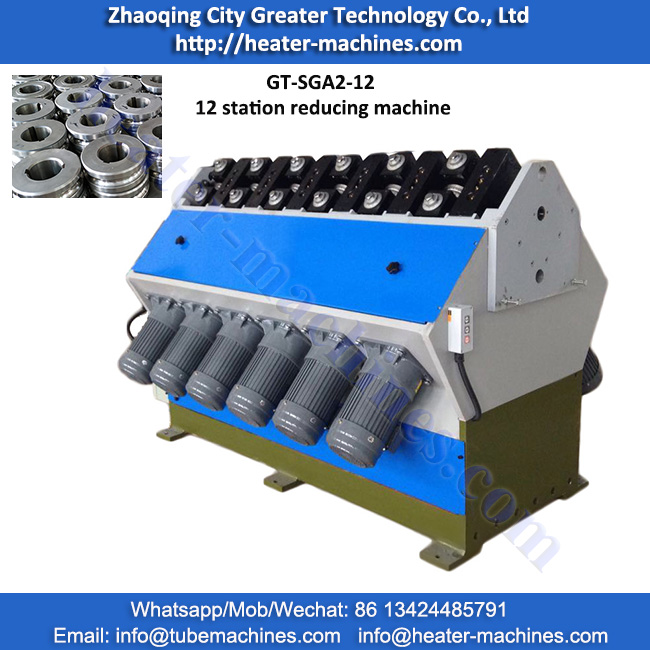

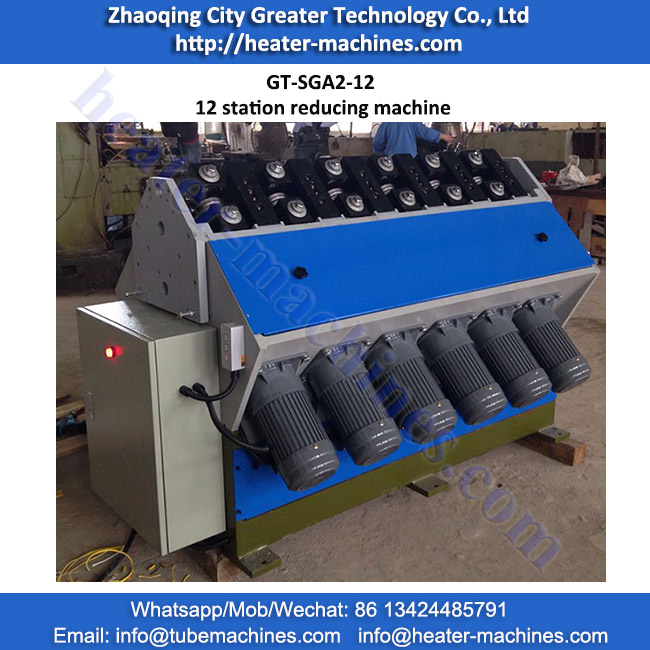

12 Group Tubular Heater Shrinking Machine(Without gearbox)

  • Item No: GT-SGA2-12
  • station: 12 stations
  • single motor power:0.75KW
  • INQUIRY

Function:

Reduce heater to increase density;
Features:

Main features: (suitable for shrinking small round tubes, flat tubes, square elements etc.)

  • Features: These kind of machines similar as most reducing machines in the market, mainly for tubular heaters not in long length, and small diameters.
    1. The best diameter to reduce: 3-10 (mm);
    2. The best length to reduce: 30-2000(mm);
    3. Machine structure: Whole/separate machine (according to customers' order);
    4. Transmission structure: Cardan shaft;
    5. Can match with tungsten carbide roller, high speed roller and Cr12Mov roller;
    5. Can make 8-16 groups, the 12 group mainly have in stock, other groups need to be customized;

  • Application:
    Round heater reduce, such as tubular heater.
    Information need for order GT-SGA2-12 roll reducing machine:
    • Tube diameter before and after reduce, such as Φ8-6.6mm
    • Length before reduce
    • Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

    A2 style reducing machine Main models and technical parameters

    Item

    GT-SGA2-12

    8Group

    8

    10 Group

    10

    12 Group

    12

    14 Group

    14

    16 Group

    16

    18 Group

    18

    length to reduce (mm)

    最佳缩管管长(mm)

    30-1500

    30-1500

    30-2000

    30-2000

    30-2500

    30-2500

    Diameter to reduce (mm)

    最佳缩管管(mm)

    3-8

    3-10

    3-10

    3-10

    3-10

    3-10

    Material of roller

    模具材质

    tungsten carbide,high speedsteel,Cr12Mov

    合金,高速钢,模具钢

    tungsten carbide,high speedsteel,Cr12Mov

    合金,高速钢,模具钢

    tungsten carbide,high speedsteel,Cr12Mov

    合金,高速钢,模具钢

    tungsten carbide,high speedsteel,Cr12Mov

    合金,高速钢,模具钢

    tungsten carbide,high speedsteel,Cr12Mov

    合金,高速钢,模具钢

    tungsten carbide,high speedsteel,Cr12Mov

    合金,高速钢,模具钢

    Single /total power

    单组功率/总功(KW)

    0.75/6

    0.75/7.5

    0.75/9

    0.75/10.5

    0.75/12

    0.75/13.5

    Reducing speed

    缩管速度:(m/min)

    10-20 Optional

    10-20可选

    10-20 Optional

    10-20可选

    10-20 Optional

    10-20可选

    10-20 Optional

    10-20可选

    10-20 Optional

    10-20可选

    10-20 Optional

    10-20可选

    Transmission structure (gimbal)

    传动结构万向

    Car transmission

    汽车传动

    Car transmission

    汽车传动

    Car transmission

    汽车传动

    Car transmission

    汽车传动

    Car transmission

    汽车传动

    Car transmission

    汽车传动

    Machine structure

    机器结构

    Separate

    分体

    Separate

    分体

    Whole/separate

    整体/分体

    Whole/separate

    整体/分体

    Whole/separate

    整体/分体

    Whole/separate

    整体/分体

    Volume (L*W*H) mm

    **mm

    995*1200*

    1300

    1200*1200*

    1300

    1415*1200*

    1300

    1630*1200*

    1300

    1840*1200*

    1300

    2050*1200*

    1300

    Net Weight 重(KG

    1000

    1200

    1600

    1800

    2000

    2200

    tubular heater 12 station rolling mill machine
