Tubular Heater Equipment

  • Tubular Heater Pipe Cutting Machine
  • Tubular Heater Pipe Cutting Machine
  • Tubular Heater Pipe Cutting Machine
Tubular Heater Pipe Cutting MachineTubular Heater Pipe Cutting MachineTubular Heater Pipe Cutting Machine

Tubular Heater Pipe Cutting Machine

  • function:cut the pipe according to the length need
  • diameter:Φ5-15 / Φ5-30mm
  • air supply: 0.6Mpa clean compressed air
  • INQUIRY

Pipe cutting machines is cut the empty pipes according to the lenght need for tubular heaters, there are manual pipe cutting machine and auto pipe cutting machine in Greater heater machinery .


According to different diameters, manual pipe cutting machine there are 2 styles:

GTCT15 pipe cutting machine - suitable for diameter between Φ5-15mm;

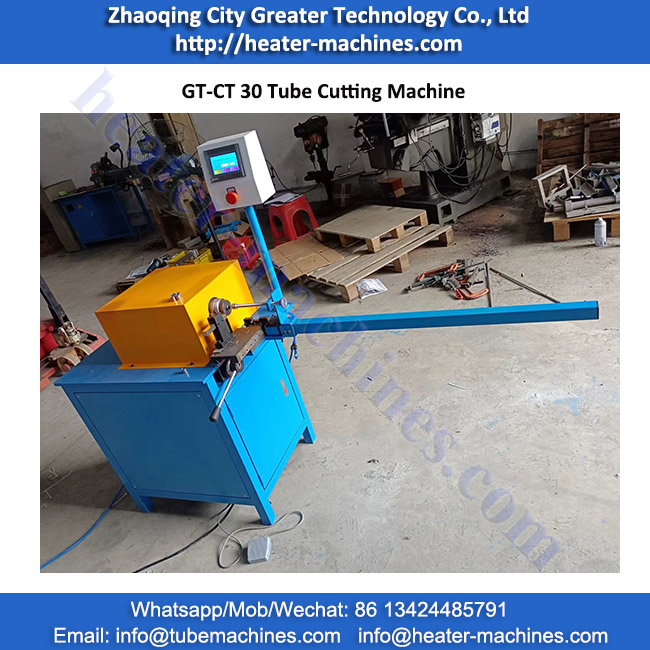

GTCT-30 pipe cutting machine - suitable for diameter betwen Φ5-30mm;


Main models and technical parameters

型号

model

管径/管长

diameter/length

生产效率

productivity

转速

speed

电源/功率

power

使用气源

air supply

尺寸

size

重量

weight

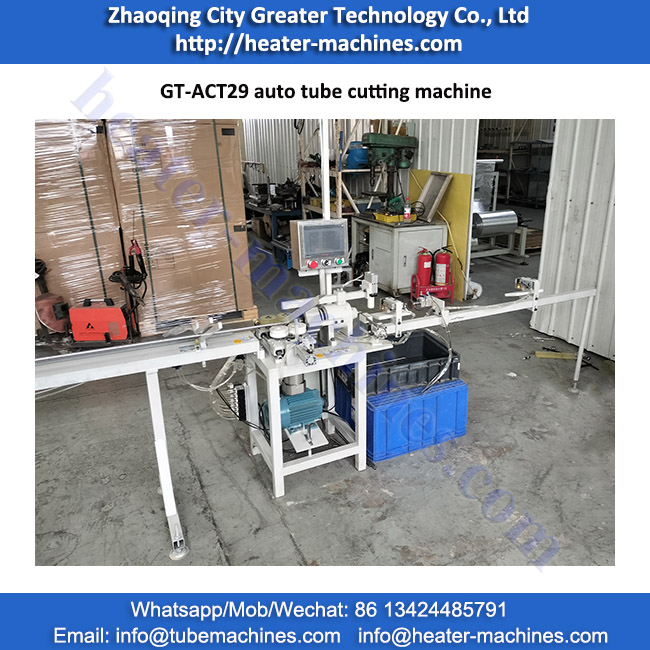

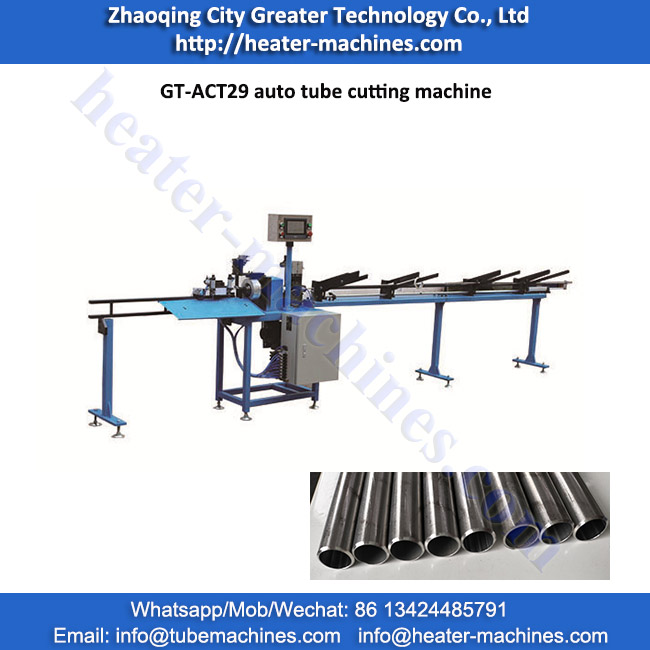

GT-ACT29

Ф6-20mm;

<6000mm

5000-10000pcs/8h

1400tpm

380V/50Hz/

0.75Kw

5-7Kg/cm³

8000*1000*1500mm

400Kg

GTCT15

GTCT-30

Ф5-15mm;

Ф5-30mm;

<6000mm

5000-10000pcs/8h

900rpm\1800rpm

380V/50HZ/ 0.75KW

5-7Kg/cm³

800*600*800mm

200KG

tubular heater <a href=https://heater-machines.com/en/product/electric-heater-tubes.html target='_blank'>tube</a> cutting machine
