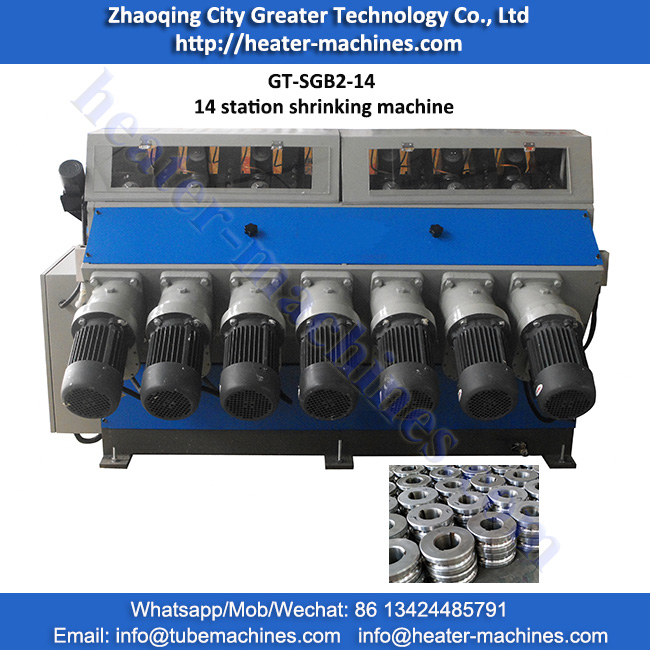

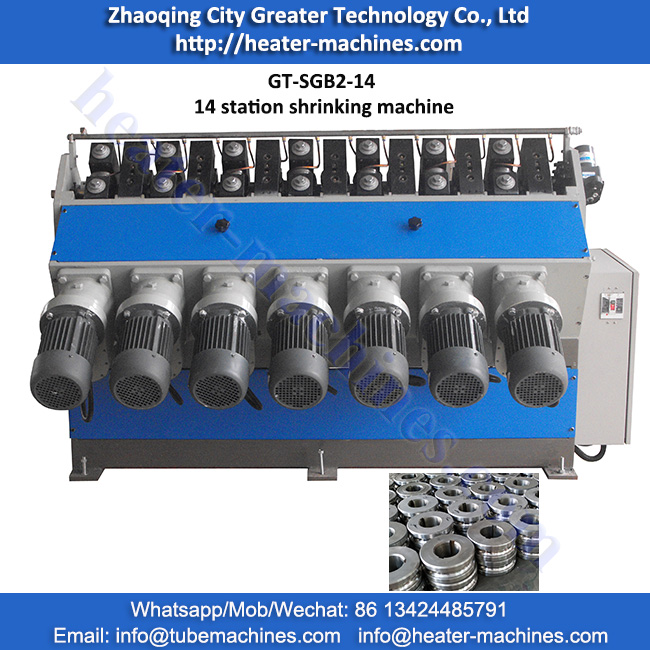

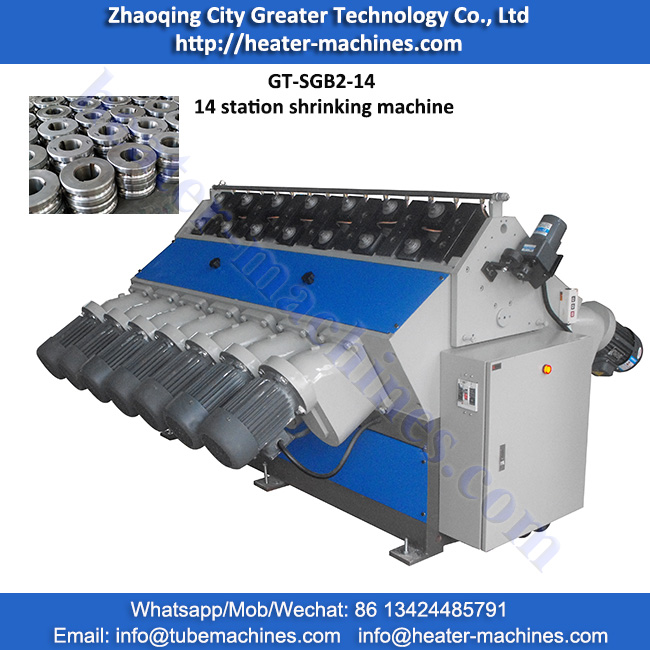

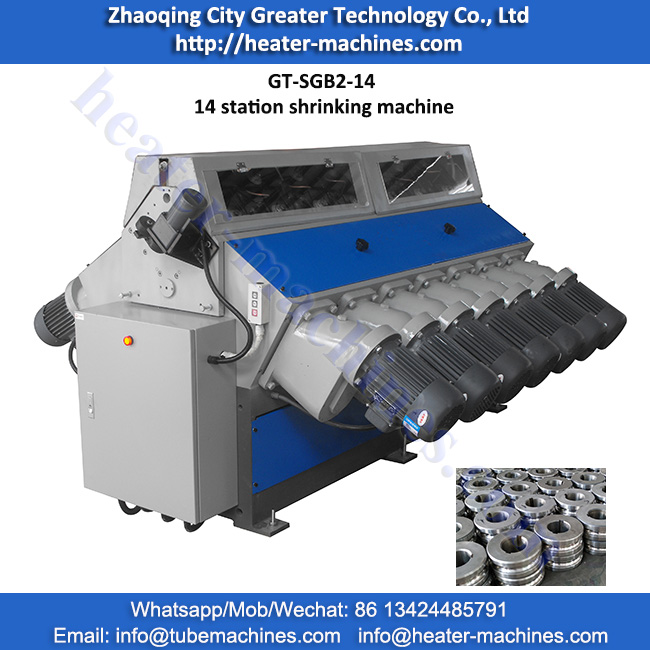

GT-SGB2 14 Station Roll Reducing Machine

GT-SGB2 14 Station Roll Reducing Machine

Rotating speed of Roller: 60rpm
Roller dimension:outside dia.φ98.5mm ;inside diameter φ45mm; thickness 38mm
Center distance between rollers: 115 mm (with adjustable distance 0.5 mm downward)
Motor power (single): 1.1KW
INQUIRY

Function:
Reduce heater to increase density;

Features:
Large power, single power can be 1.1kw,1.5kw,2.2kw according to order;
Large torque, large power, more suitable for high density tubes, large tubes and long tubes;
The best reference range to shrink (mm): Φ4-Φ25mm; length recommend shorter than 4 meters (within the reference range, the life of the equipment will be longer).
Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;
Suitable tube's shape reduce: round, oblate, square shape;
Shrinking speed: uniform speed, non-uniform speed (according to the demand of customer).
Change roller or roll assemble can reduce different diameter;
Can match with our feeding machine to increase of efficiency;
Can match with our marking mechanism for mark your brand heaters.

Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;

Information need for order GT-SGB2-14 roll reducing machine:
Tube diameter before and after reduce, such as Φ14-12mm
Length before reduce
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)

B style reducing machine Main models and technical parameters

Item 型号

GT-SGB2

8 Group

8组

10 Group

10组

12 Group

12组

14 Group

14组

16 Group

16组

18 Group

18组

length to reduce (mm)

最佳缩管管长(mm)

30-1500

30-2000

30-3000

30-4000

30-5000

30-6000

Diameter to reduce

最佳缩管管径(mm)

3-15

3-18

3-20

3-25

3-30

Material of roller

模具材质
