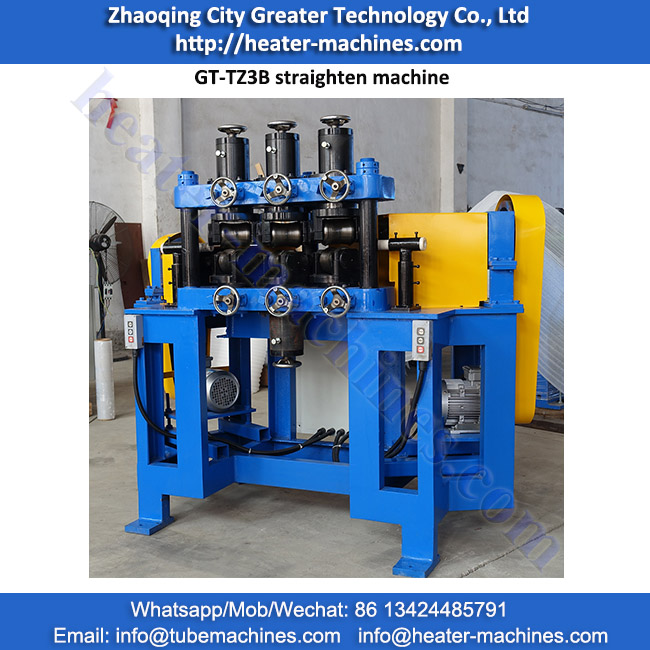

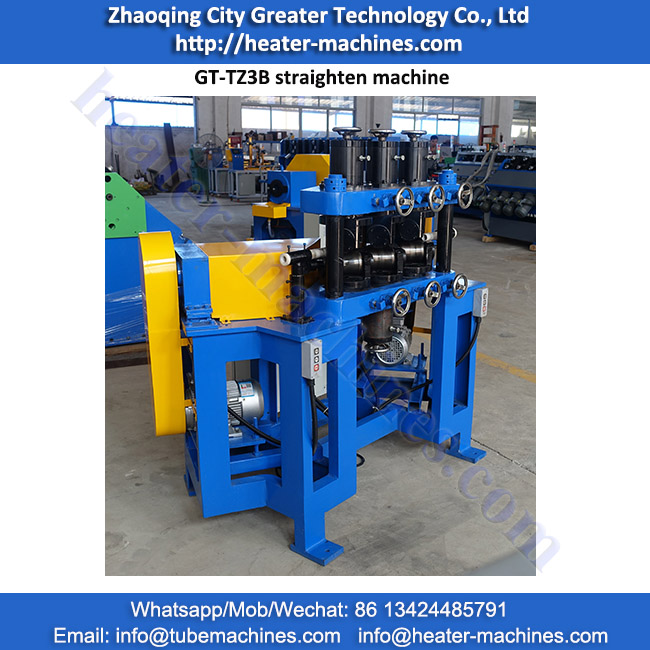

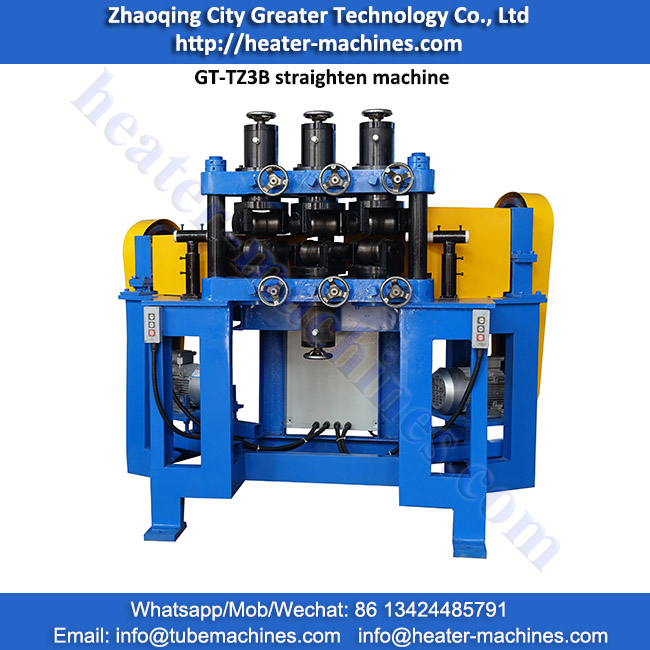

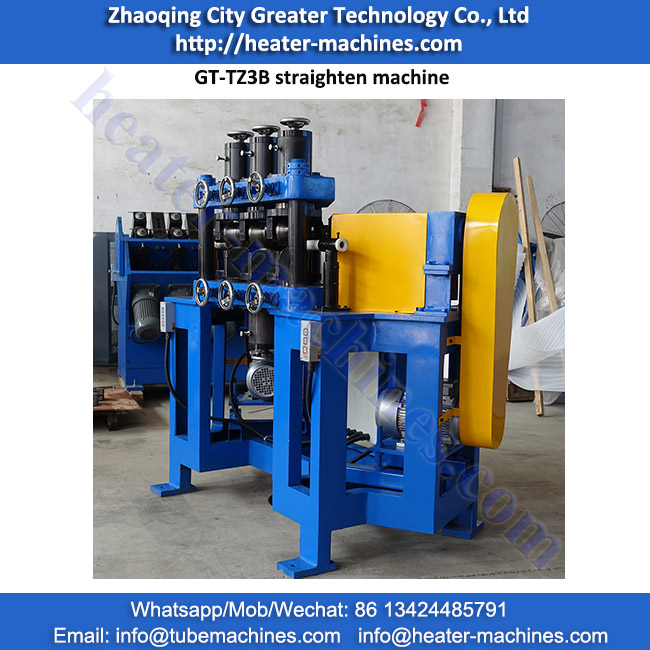

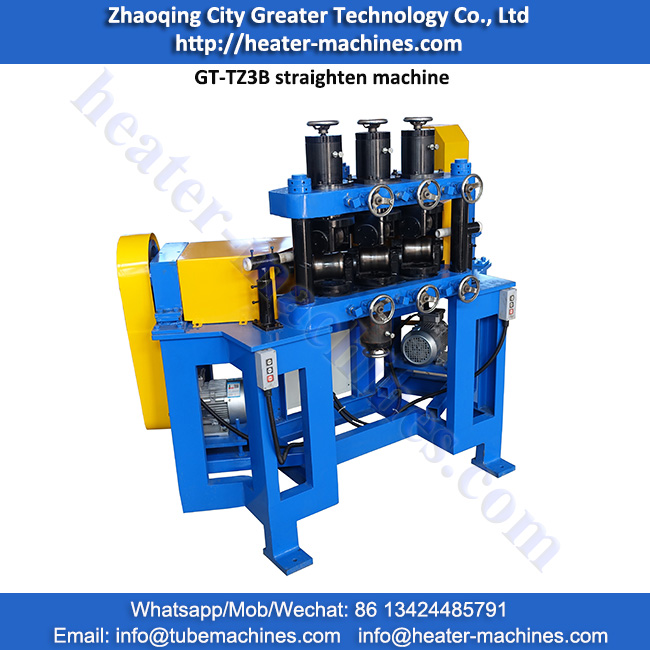

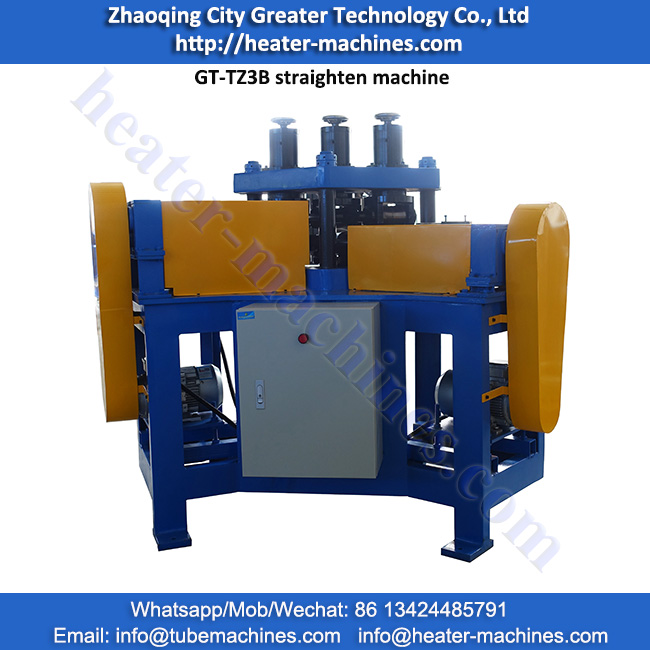

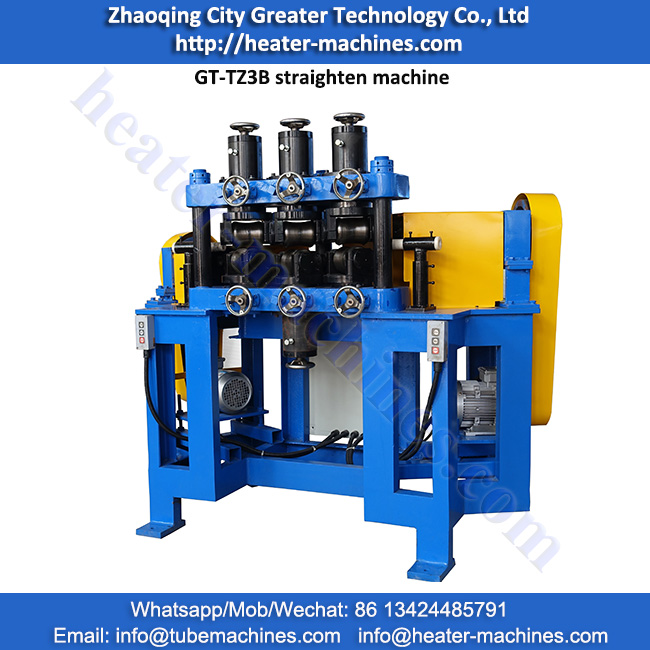

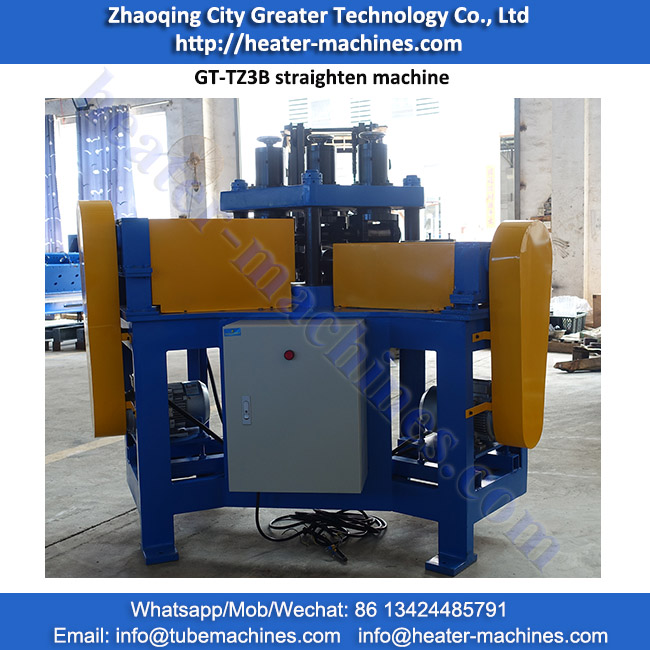

GTTZ3B straightening machine is mainly used for straightening and repairing bent steel pipe during pipe-making. The machine is composed of three groups of roller assembly, connecting transmission, motor and so on. There is no need to replace the rollers for straightening different diameters.
Information need for order GTTZ3B Straightening Machine:
Diameter to straighten
length need to straighten
filled or empty elements
Main models and technical parameters
|
model |
diameter/length |
Productivity-8H auto/manual |
speed |
power |
straightening group |
size |
weight |
|
GTTZ3B |
Ф4-20mm; >450mm |
12000pcs/ 5000pcs (about) |
1400tpm |
380V/50HZ/ 2.2*2/3.7KW |
3 |
1500*1300* 1500mm |
800KG |
|
GTTZ12B |
Φ2-Φ10； 200-2500mm； |
10000 (米)m |
1400tpm |
380V/50HZ/ 1.1KW |
12 |
1200*800* 1300 |
400KG |
