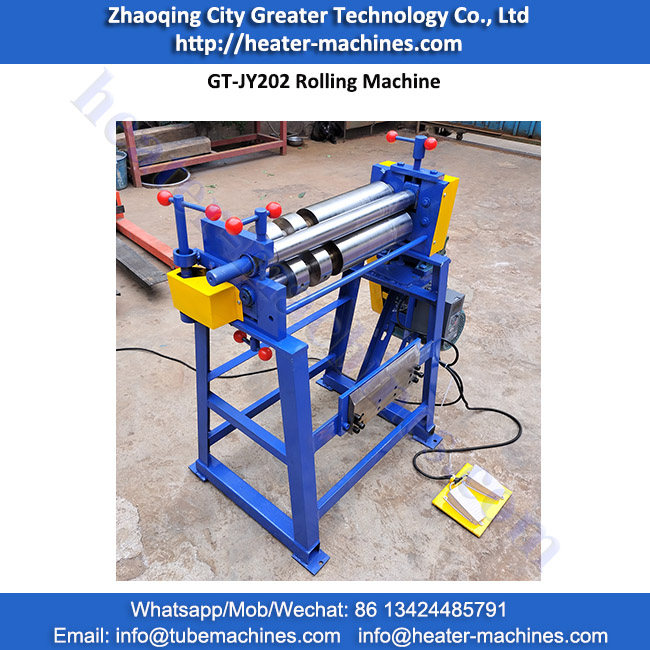

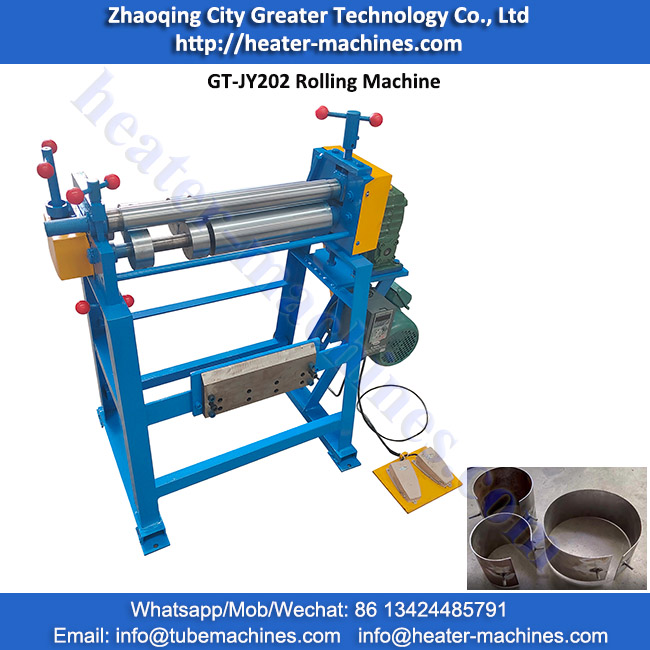

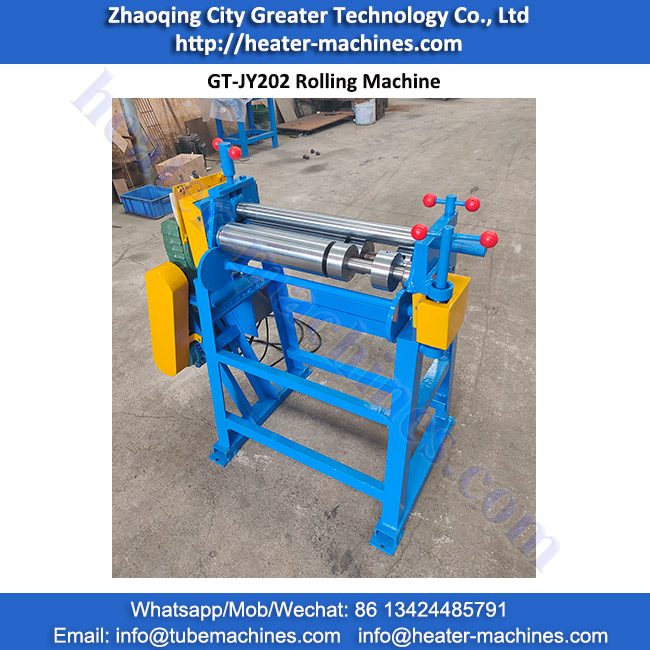

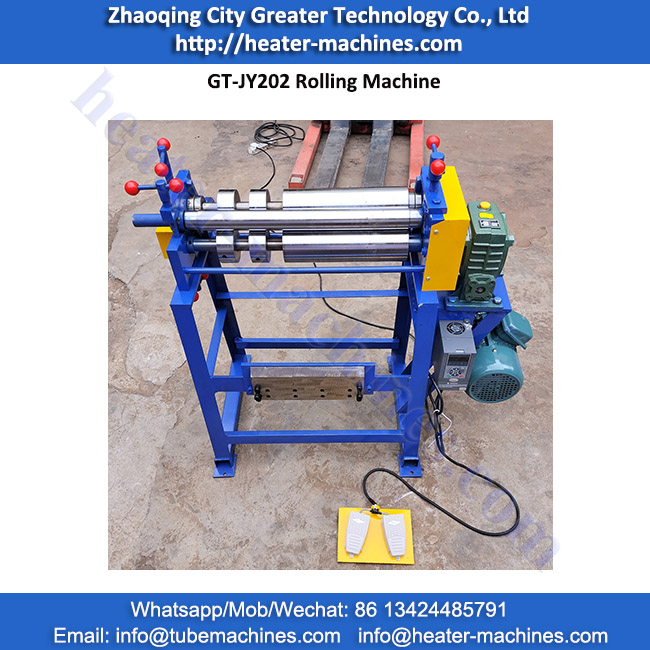

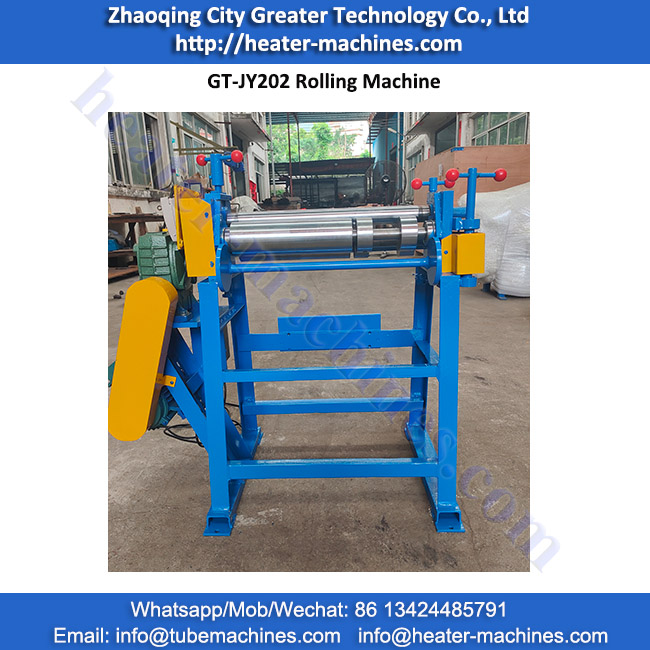

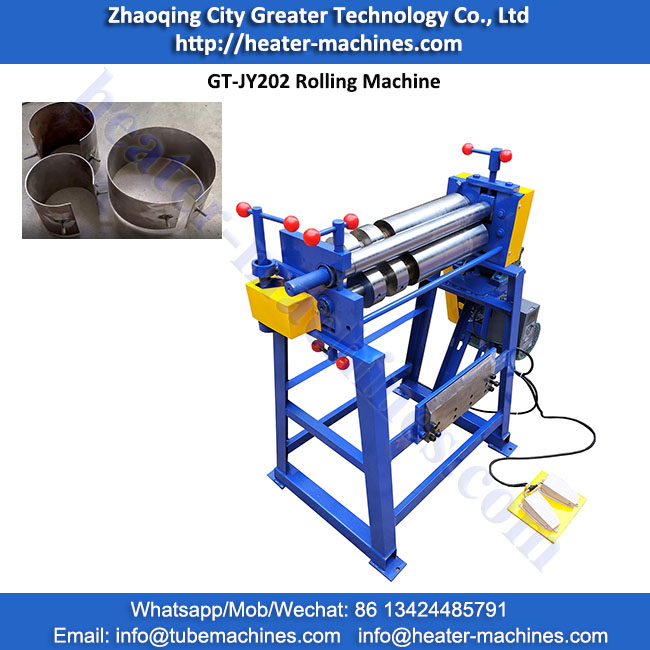

GT-JY202 Rolling Machine

Function:

Rolling round metal fin;

Main features:

1. Power supply: 3 phase 380V;

2. Motor power: 1.1KW;

3. Rolling speed can adjust;

4. min diameter to roll: 100mm;

5. max diameter to roll:1000mm;

6. max width of fin: <500mm;

7. size of machine: about 1100*500*1000mm (L*W*H)

8. N.W: about 160kg.


Application:
To roll round metal fin for band heaters, ceramic heaters, mica heaters.

Information need for order GT-JY202 rolling machine:
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz);

rolling machine for band heaters
