Industrial Heater Equipment

Industrial Heater Trimming Machine

Item No.:GT-CG30B
Maximum turning stroke: 30mm
The range of turned roll diameter: Φ5–Φ25
Air supply: 0.6Mpa clean compressed air
INQUIRY

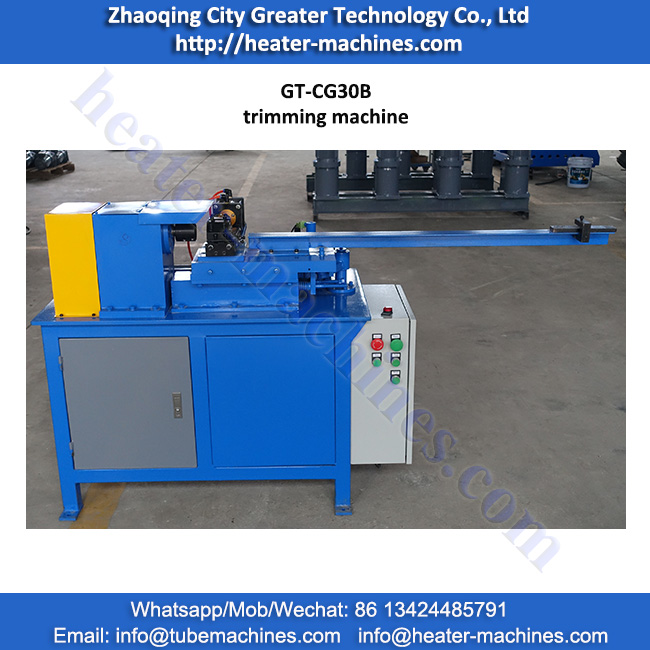

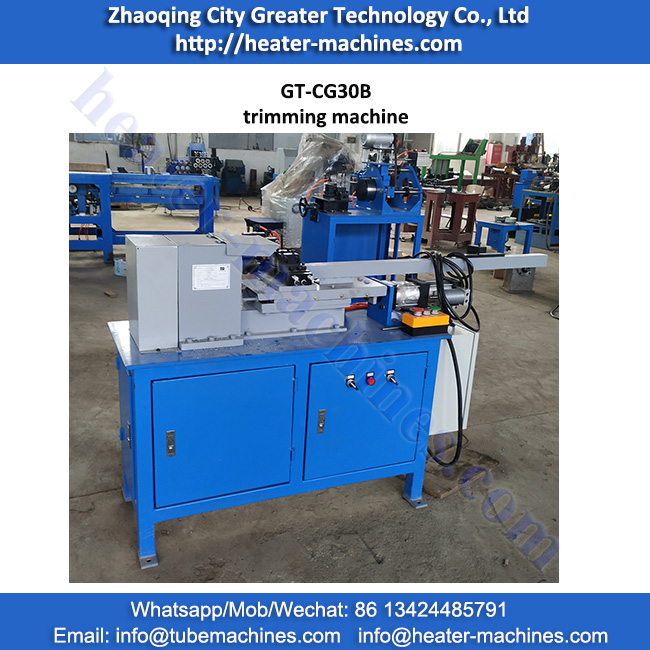

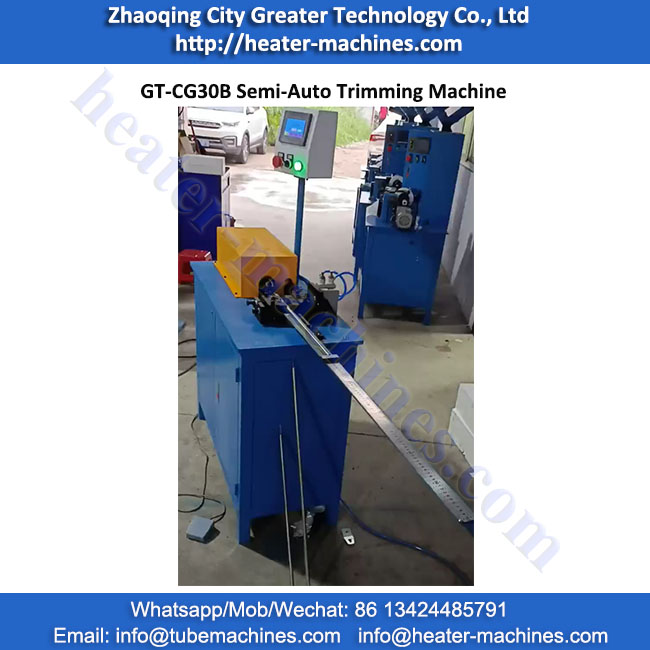

GT-CG30B Semi-auto turning machine is mainly for workpieces that are difficult to operate on both sides. For example, long, large and curved workpieces are suitable for GT-CG30B. The machine is suitable for operating copper pipes, iron pipes, stainless steel pipes, aluminum pipes, etc.

Main models and technical parameters

model	Suitable diameter to trim	Length to trim	Speed of mainshaft	Power supply	Air supply	size
GT-CG30B	Round pipe within 5-25mm	Any length	900-2100（rpm)	380V 50HZ 0.75KW	0.6Mpa	12008001100
