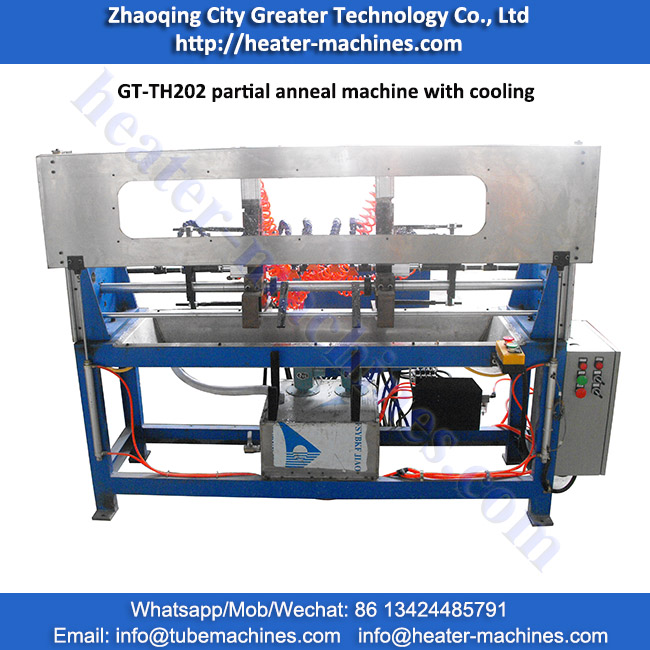

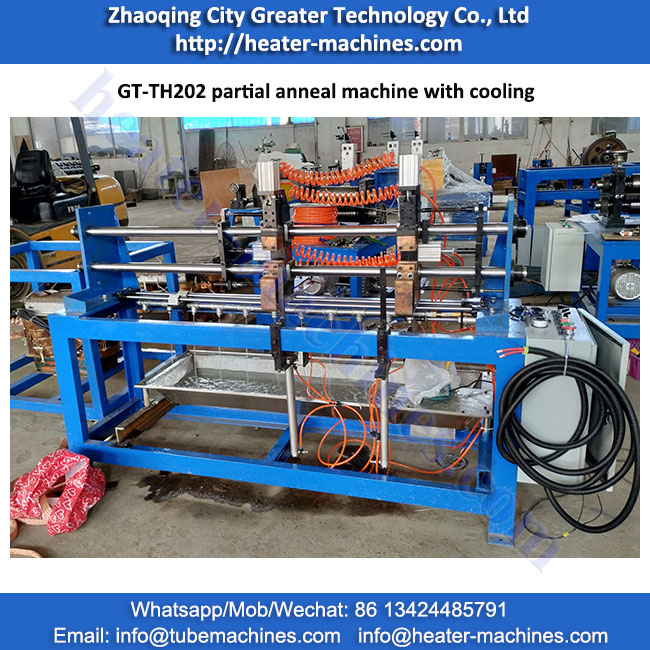

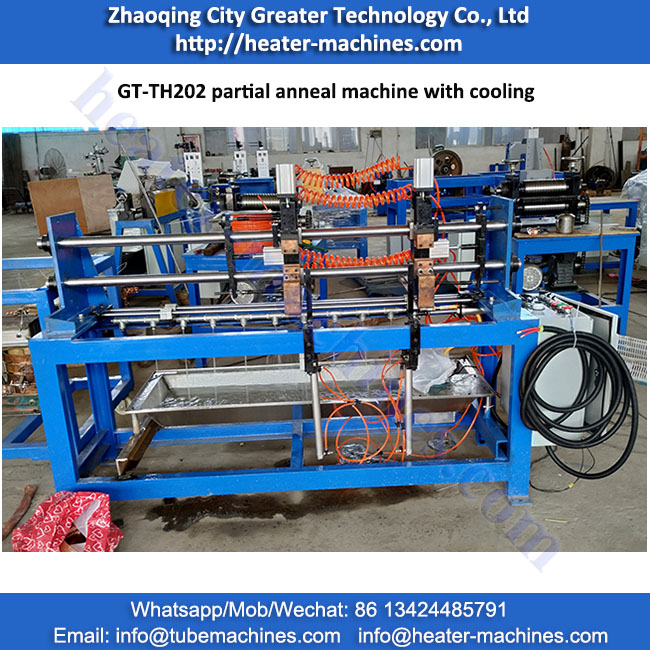

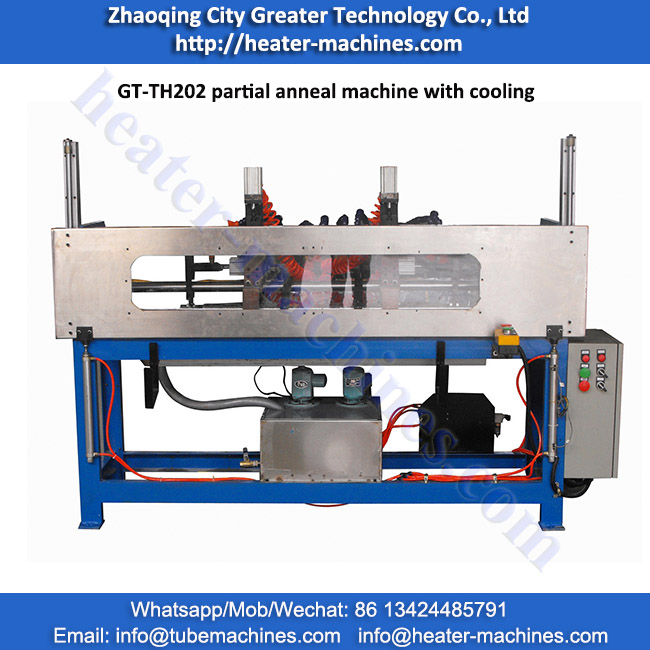

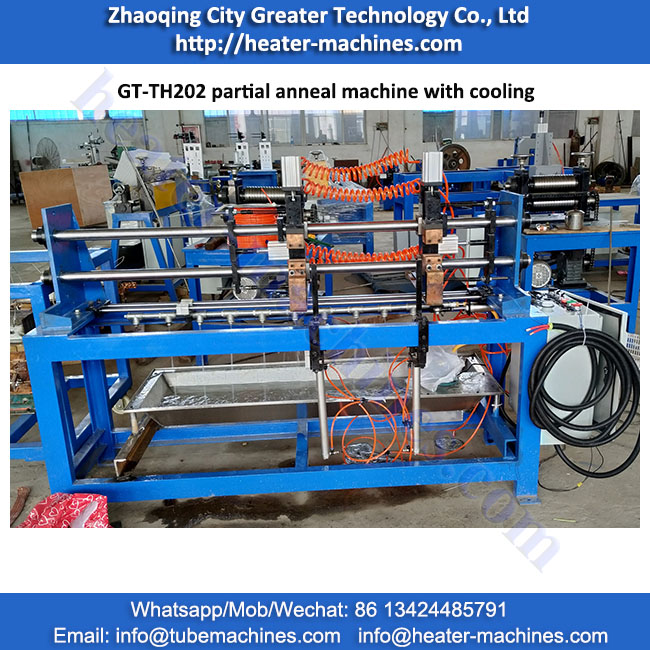

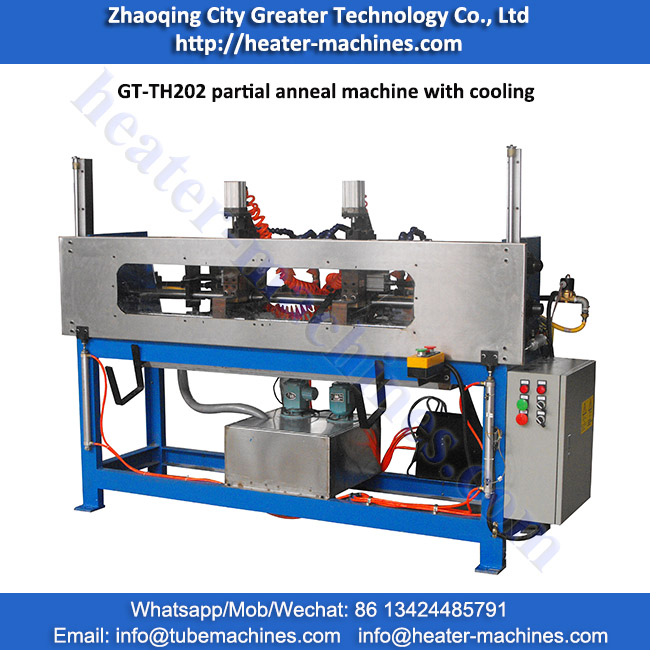

35 KW Annealing Machine (With Shower Cooling)

Function:

Anneal some part for the heater with water cooling

Main features:

*** anneal power adjust easy, there are 6-7 grades to adjust;

*** time to anneal set easy;

*** length adjust easy;

*** high efficiency, easy opeartion;

*** pneumatic clamping, safe and easy operate;

*** with shower cooling;

Application:

partial anneal heater before bending;

Information need for order GT-TH201 Annealing Machine:

*** diameter of heater to anneal;

*** length of heater to anneal;

*** power supply such as 3 phase 380V, single phase 220V, 50HZ;

This machine adopts a dry-type transformer and is equipped with a pneumatic clamping mechanism. This mechanism can clamp the tube onto the electrodes and make use of low voltage and high-current to create short-circuit with the metal case to heat and anneal the components, which makes preparations for the further bending and shaping of the components. And this machine consists of a clamping control of delay electrifying, an electrifying timing control and a delay power-off control . So it can avoid producing electric arcs between the components and electrodes that will destroy the surface finish quality of the components. This transformer has a series of tap changing which can change the output voltage according to different demands so as to anneal and process components made of copper, aluminum, stainless steel or iron-clad components.
